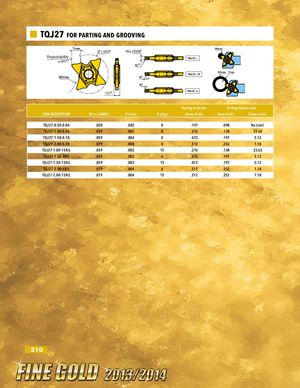

TQJ27 FOR PARTING AND GROOVING Ø1.063" W±.0008" Repeatability ±.001" .157" Parting to Center Parting Hollow Bars ITEM DESCRIPTION W (+/-.0008") R (inch) K (deg) Dmax (inch) Tmax (inch) Dmax (inch) TQJ27-0.50-0.04 .020 .002 0 .197 .098 No Limit TQJ27-1.00-0.06 .039 .002 0 .276 .138 23.62 TQJ27-1.50-0.10 .059 .004 0 .472 .197 5.12 TQJ27-2.00-0.20 .079 .008 0 .512 .252 1.18 TQJ27-1.00-15R/L .039 .002 15 .276 .138 23.62 TQJ27-1.50-6R/L .059 .002 6 .472 .197 5.12 TQJ27-1.50-15R/L .059 .002 15 .472 .197 5.12 TQJ27-2.00-6R/L .079 .004 6 .512 .252 1.18 TQJ27-2.00-15R/L .079 .004 15 .512 .252 1.18 210
