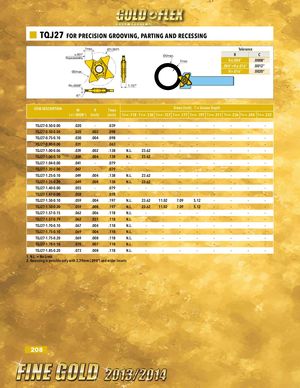

TQJ27 FOR PRECISION GROOVING, PARTING AND RECESSING Tmax. (Ø1.063") Tolerance ±.001" ØDmax. R C Repeatability Tmax. R≤.004" .0008” .004".016" .0020” W±.0008" 1.157" R±C ITEM DESCRIPTION W R Tmax Dmax (inch) T = Groove Depth (+/-.0008") (inch) (inch) T<= .118 T<= .138 T<= .157 T<= .177 T<= .197 T<= .217 T<= .236 T<= .244 T<= .252 TQJ27-0.50-0.00 .020 - .039 - - - - - - - - - TQJ27-0.50-0.04 .020 .002 .098 - - - - - - - - - TQJ27-0.75-0.10 .030 .004 .098 - - - - - - - - - TQJ27-0.80-0.00 .031 - .063 - - - - - - - - - TQJ27-1.00-0.06 .039 .002 .138 N.L. 23.62 - - - - - - - TQJ27-1.00-0.10 .039 .004 .138 N.L. 23.62 - - - - - - - TQJ27-1.04-0.00 .041 - .079 - - - - - - - - - TQJ27-1.20-0.00 .047 - .079 - - - - - - - - - TQJ27-1.25-0.10 .049 .004 .138 N.L. 23.62 - - - - - - - TQJ27-1.25-0.20 .049 .008 .138 N.L. 23.62 - - - - - - - TQJ27-1.40-0.00 .055 - .079 - - - - - - - - - TQJ27-1.47-0.00 .058 - .098 - - - - - - - - - TQJ27-1.50-0.10 .059 .004 .197 N.L. 23.62 11.02 7.09 5.12 - - - - TQJ27-1.50-0.20 .059 .008 .197 N.L. 23.62 11.02 7.09 5.12 - - - - TQJ27-1.57-0.15 .062 .006 .118 N.L. - - - - - - - - TQJ27-1.57-0.79 .062 .031 .118 N.L. - - - - - - - - TQJ27-1.70-0.10 .067 .004 .118 N.L. - - - - - - - - TQJ27-1.75-0.10 .069 .004 .118 N.L. - - - - - - - - TQJ27-1.75-0.20 .069 .008 .118 N.L. - - - - - - - - TQJ27-1.78-0.18 .070 .007 .118 N.L. - - - - - - - - TQJ27-1.85-0.20 .073 .008 .118 N.L. - - - - - - - - 1. N.L. = No Limit 2. Recessing is possible only with 2.39mm (.094”) and wider inserts 208
