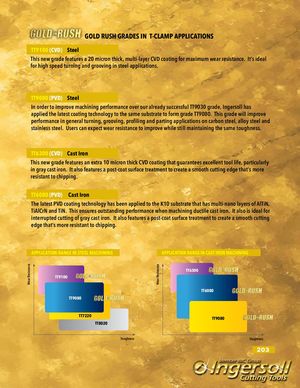

Общий каталог Ingersoll 2013 - 2014 - страница 203

GOLD RUSH GRADES IN T-CLAMP APPLICATIONS TT9100 (CVD) Steel This new grade features a 20 micron thick, multi-layer CVD coating for maximum wear resistance. It’s ideal for high speed turning and grooving in steel applications. TT9080 (PVD) Steel In order to improve machining performance over our already successful TT9030 grade, Ingersoll has applied the latest coating technology to the same substrate to form grade TT9080. This grade will improve performance in general turning, grooving, profiling and parting applications on carbon steel, alloy steel and stainless steel. Users can expect wear resistance to improve while still maintaining the same toughness. TT6300 (CVD) Cast Iron This new grade features an extra 10 micron thick CVD coating that guarantees excellent tool life, particularly in gray cast iron. It also features a post-coat surface treatment to create a smooth cutting edge that’s more resistant to chipping. TT6080 (PVD) Cast Iron The latest PVD coating technology has been applied to the K10 substrate that has multi-nano layers of AlTiN, TiAlCrN and TiN. This ensures outstanding performance when machining ductile cast iron. It also is ideal for interrupted cutting of gray cast iron. It also features a post-coat surface treatment to create a smooth cutting edge that’s more resistant to chipping. APPLICATION RANGE IN STEEL MACHINING APPLICATION RANGE IN CAST IRON MACHINING TT6300 TT9100 TT6080 TT9080 TT7220 TT9080 TT8020 Toughness Toughness 203 Wear Resistance Wear Resistance
