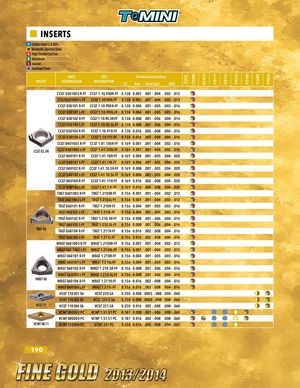

Общий каталог Ingersoll 2013 - 2014 - страница 190
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2016 - 2017
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
ПЛАСТИНЫ
- P — Углеродистая сталь C: 0.45%
- M — Аустенитная нержавеющая сталь
- K — Высокопрочный чугун
- N — Алюминий
- S — Inconel
- H — Закалённая сталь
| INSERT | ANSI DESIGNATION | ISO DESIGNATION | I.C. | Rad | Feed (ipr) | DOC | PV3010 | CT3000 | TT8115 | TT8125 | TT9225 | TT5100 | TT5080 | TT9020 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CCGT 03, 04 | CCGT 0301003 R-FF | CCGT 1.10.9X0R-FF | 0.138 | 0.001 | .001 - .004 | .002 - .012 | ||||||||
| CCGT0301003 L-FF | CCGT 1.10.9X0L-FF | 0.138 | 0.001 | .001 - .004 | .002 - .012 | |||||||||
| CCGT 030101 R-FF | CCGT 1.10.90XR-FF | 0.138 | 0.004 | .001 - .005 | .003 - .016 | |||||||||
| CCGT 030101 L-FF | CCGT 1.10.90XL-FF | 0.138 | 0.004 | .001 - .005 | .003 - .016 | |||||||||
| CCGT 030102 R-FF | CCGT 1.10.90.5R-FF | 0.138 | 0.008 | .001 - .006 | .004 - .016 | |||||||||
| CCGT 030102 L-FF | CCGT 1.10.90.5L-FF | 0.138 | 0.008 | .001 - .006 | .004 - .016 | |||||||||
| CCGT 030104 R-FF | CCGT 1.10.91R-FF | 0.138 | 0.016 | .002 - .008 | .004 - .016 | |||||||||
| CCGT 030104 L-FF | CCGT 1.10.91L-FF | 0.138 | 0.016 | .002 - .008 | .004 - .016 | |||||||||
| CCGT 0401003 R-FF | CCGT 1.41.1X0R-FF | 0.169 | 0.001 | .001 - .004 | .002 - .016 | |||||||||
| CCGT 0401003 L-FF | CCGT 1.41.1X0L-FF | 0.169 | 0.001 | .001 - .004 | .002 - .016 | |||||||||
| CCGT 040101 R-FF | CCGT 1.41.10R-FF | 0.169 | 0.004 | .001 - .005 | .004 - .020 | |||||||||
| CCGT 040101 L-FF | CCGT 1.41.10L-FF | 0.169 | 0.004 | .001 - .005 | .004 - .020 | |||||||||
| CCGT 040102 R-FF | CCGT 1.41.10.5R-FF | 0.169 | 0.008 | .001 - .005 | .004 - .020 | |||||||||
| CCGT 040102 L-FF | CCGT 1.41.10.5L-FF | 0.169 | 0.008 | .001 - .005 | .004 - .020 | |||||||||
| CCGT 040104 R-FF | CCGT 1.41.11R-FF | 0.169 | 0.016 | .002 - .008 | .004 - .020 | |||||||||
| CCGT 040104 L-FF | CCGT 1.41.11L-FF | 0.169 | 0.016 | .002 - .008 | .004 - .020 | |||||||||
| TBGT 06 | TBGT 0601003 R-FF | TBGT 1.21X0R-FF | 0.156 | 0.001 | .001 - .004 | .002 - .012 | ||||||||
| TBGT 0601003 L-FF | TBGT 1.21X0L-FF | 0.156 | 0.001 | .001 - .004 | .002 - .012 | |||||||||
| TBGT 060101 R-FF | TBGT 1.210R-FF | 0.156 | 0.004 | .001 - .005 | .003 - .016 | |||||||||
| TBGT 060101 L-FF | TBGT 1.210L-FF | 0.156 | 0.004 | .001 - .005 | .003 - .016 | |||||||||
| TBGT 060102 R-FF | TBGT 1.210.5R-FF | 0.156 | 0.008 | .001 - .006 | .004 - .016 | |||||||||
| TBGT 060102 L-FF | TBGT 1.210.5L-FF | 0.156 | 0.008 | .001 - .006 | .004 - .016 | |||||||||
| TBGT 06 (продолж.) | TBGT 060104 R-FF | TBGT 1.211R-FF | 0.156 | 0.016 | .002 - .008 | .004 - .016 | ||||||||
| TBGT 060104 L-FF | TBGT 1.211L-FF | 0.156 | 0.016 | .002 - .008 | .004 - .016 | |||||||||
| WBGT 06 | WBGT 0601003 R-FF | WBGT 1.21X0R-FF | 0.156 | 0.001 | .001 - .004 | .002 - .012 | ||||||||
| WBGT 0601003 L-FF | WBGT 1.21X0L-FF | 0.156 | 0.001 | .001 - .004 | .002 - .012 | |||||||||
| WBGT 060101 R-FF | WBGT 1.210R-FF | 0.156 | 0.004 | .001 - .005 | .003 - .016 | |||||||||
| WBGT 060101 L-FF | WBGT 1.210L-FF | 0.156 | 0.004 | .001 - .005 | .003 - .016 | |||||||||
| WBGT 060102 R-FF | WBGT 1.210.5R-FF | 0.156 | 0.008 | .001 - .006 | .004 - .016 | |||||||||
| WBGT 060102 L-FF | WBGT 1.210.5L-FF | 0.156 | 0.008 | .001 - .006 | .004 - .016 | |||||||||
| WBGT 060104 R-FF | WBGT 1.211R-FF | 0.156 | 0.016 | .002 - .008 | .004 - .016 | |||||||||
| WBGT 060104 L-FF | WBGT 1.211L-FF | 0.156 | 0.016 | .002 - .008 | .004 - .016 | |||||||||
| VCGT 11 | VCGT 110301 SA | VCGT 220 SA | 0.250 | 0.004 | .0005 - .008 | .004 - .060 | ||||||||
| VCGT 110302 SA | VCGT 220.5 SA | 0.250 | 0.008 | .0008 - .008 | .008 - .060 | |||||||||
| VCGT 110304 SA | VCGT 221 SA | 0.250 | 0.016 | .002 - .008 | .008 - .060 | |||||||||
| VCMT 08,11 | VCMT 080202 PC | VCMT 1.51.51 PC | 0.187 | 0.008 | .001 - .006 | .008 - .060 | ||||||||
| VCMT 080204 PC | VCMT 1.51.51 PC | 0.187 | 0.016 | .002 - .008 | .008 - .060 | |||||||||
| VCMT 110304 PC | VCMT 221 PC | 0.250 | 0.016 | .002 - .008 | .004 - .067 | |||||||||
