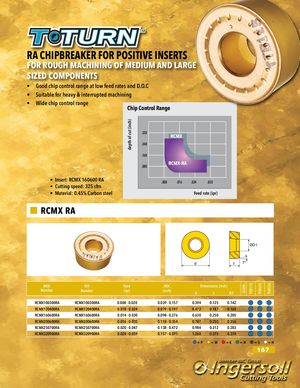

depth of cut (inch) Grade TT8115 TT8125 TT8135 RA CHIPBREAKER FOR POSITIVE INSERTS FOR ROUGH MACHINING OF MEDIUM AND LARGE SIZED COMPONENTS • Good chip control range at low feed rates and D.O.C • Suitable for heavy & interrupted machining • Wide chip control range Chip Control Range .320 RCMX .240 .160 RCMX-RA .080 • Insert: RCMX 160600 RA .008 .016 .024 .032 • Cutting speed: 325 sfm • Material: 0.45% Carbon steel Feed rate (ipr) RCMX RA ØD1 d t 7° ANSI ISO feed DOC Dimensions (inch) Number Number (ipr) (inch) d t D1 RCMX100300RA RCMX100300RA 0.008 - 0.020 0.039 - 0.157 0.394 0.125 0.142 RCMX120400RA RCMX120400RA 0.010 - 0.024 0.079 - 0.197 0.472 0.187 0.165 RCMX160600RA RCMX160600RA 0.014 - 0.030 0.098 - 0.276 0.630 0.250 0.205 RCMX200600RA RCMX200600RA 0.016 - 0.035 0.118 - 0.354 0.787 0.250 0.256 RCMX250700RA RCMX250700RA 0.020 - 0.047 0.138 - 0.472 0.984 0.312 0.283 RCMX320900RA RCMX320900RA 0.024 - 0.059 0.157 - 0.591 1.260 0.375 0.374 =P =M =K =N =S =H 167
