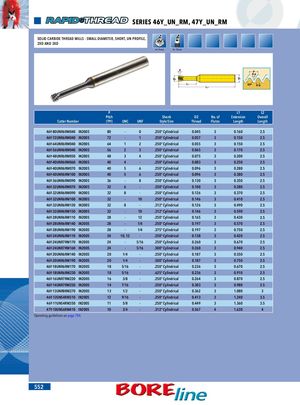

SERIES 46Y_UN_RM, 47Y_UN_RM
Твердосплавные цельные резьбовые фрезы малого диаметра, короткие, профиль UN, 2xD и 3xD
| Номер фрезы | Шаг (TPI) | UNC | UNF | Хвостовик, стиль/размер | D2, диаметр резьбы | Число зубьев | Длина вылета L1 | Общая длина L2 |
|---|---|---|---|---|---|---|---|---|
| 46Y-80UNR6RM040 IN2005 | 80 | - | 0 | .250" Cylindrical | 0.045 | 3 | 0.160 | 2.5 |
| 46Y-72UNR6RM040 IN2005 | 72 | - | 1 | .250" Cylindrical | 0.057 | 3 | 0.150 | 2.5 |
| 46Y-64UNR6RM040 IN2005 | 64 | 1 | 2 | .250" Cylindrical | 0.055 | 3 | 0.150 | 2.5 |
| 46Y-56UNR6RM040 IN2005 | 56 | 2 | 3 | .250" Cylindrical | 0.065 | 3 | 0.170 | 2.5 |
| 46Y-48UNR6RM050 IN2005 | 48 | 3 | 4 | .250" Cylindrical | 0.075 | 3 | 0.200 | 2.5 |
| 46Y-40UNR6RM060 IN2005 | 40 | 4 | - | .250" Cylindrical | 0.083 | 3 | 0.250 | 2.5 |
| 46Y-40UNR6RM070 IN2005 | 40 | 5 | 6 | .250" Cylindrical | 0.096 | 3 | 0.280 | 2.5 |
| 46Y-40UNR6RM100 IN2005 | 40 | 5 | 6 | .250" Cylindrical | 0.096 | 3 | 0.380 | 2.5 |
| 46Y-36UNR6RM090 IN2005 | 36 | - | 8 | .250" Cylindrical | 0.130 | 3 | 0.350 | 2.5 |
| 46Y-32UNR6RM070 IN2005 | 32 | 6 | - | .250" Cylindrical | 0.100 | 3 | 0.280 | 2.5 |
| 46Y-32UNR6RM090 IN2005 | 32 | 8 | - | .250" Cylindrical | 0.126 | 3 | 0.370 | 2.5 |
| 46Y-32UNR6RM100 IN2005 | 32 | - | 10 | .250" Cylindrical | 0.146 | 3 | 0.410 | 2.5 |
| 46Y-32UNR6RM120 IN2005 | 32 | 8 | - | .312" Cylindrical | 0.126 | 3 | 0.490 | 2.5 |
| 46Y-32UNR6RM150 IN2005 | 32 | - | 10 | .312" Cylindrical | 0.146 | 3 | 0.590 | 2.5 |
| 46Y-28UNR6RM110 IN2005 | 28 | - | 12 | .250" Cylindrical | 0.165 | 3 | 0.430 | 2.5 |
| 46Y-28UNR6RM140 IN2005 | 28 | - | 1/4 | .250" Cylindrical | 0.197 | 3 | 0.570 | 2.5 |
| 46Y-28UNR6RM190 IN2005 | 28 | - | 1/4 | .375" Cylindrical | 0.197 | 3 | 0.750 | 2.5 |
| 46Y-24UNR6RM110 IN2005 | 24 | 10, 12 | - | .250" Cylindrical | 0.138 | 3 | 0.420 | 2.5 |
| 46Y-24UNR7RM170 IN2005 | 24 | - | 5/16 | .250" Cylindrical | 0.260 | 3 | 0.670 | 2.5 |
| 46Y-24UNR7RM160 IN2005 | 24 | - | 5/16 | .500" Cylindrical | 0.260 | 3 | 0.940 | 2.5 |
| 46Y-20UNR6RM140 IN2005 | 20 | 1/4 | - | .250" Cylindrical | 0.187 | 3 | 0.550 | 2.5 |
| 46Y-20UNR6RM190 IN2005 | 20 | 1/4 | - | .500" Cylindrical | 0.187 | 3 | 0.750 | 2.5 |
| 46Y-18UNR6RM170 IN2005 | 18 | 5/16 | - | .250" Cylindrical | 0.236 | 3 | 0.670 | 2.5 |
| 46Y-18UNR6RM230 IN2005 | 18 | 5/16 | - | .625" Cylindrical | 0.236 | 3 | 0.910 | 2.5 |
| 46Y-16UNR7RM220 IN2005 | 16 | 3/8 | - | .250" Cylindrical | 0.264 | 3 | 0.870 | 2.5 |
| 46Y-14UNR7RM250 IN2005 | 14 | 7/16 | - | .250" Cylindrical | 0.303 | 3 | 0.980 | 2.5 |
| 46Y-13UNR8RM270 IN2005 | 13 | 1/2 | - | .250" Cylindrical | 0.362 | 3 | 1.080 | 3 |
| 46Y-12UNS4RM310 IN2005 | 12 | 9/16 | - | .250" Cylindrical | 0.413 | 3 | 1.240 | 3.5 |
| 46Y-11UNS4RM350 IN2005 | 11 | 5/8 | - | .250" Cylindrical | 0.449 | 3 | 1.360 | 3.5 |
| 47Y-10UNS6RM410 IN2005 | 10 | 3/4 | - | .312" Cylindrical | 0.567 | 4 | 1.630 | 4 |
Указания по эксплуатации на странице 704.
