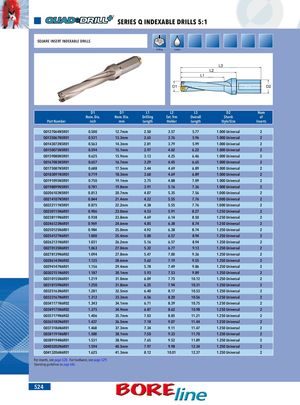

SERIES Q INDEXABLE DRILLS 5:1
Сверла со сменными квадратными пластинами
Сверление. Охлаждающая жидкость.
| Номер детали | D1, номинальный диаметр, дюйм | D1, номинальный диаметр, мм | L1, длина сверления | L2, вылет из державки | L3, общая длина | D2, тип/размер хвостовика | Кол-во пластин |
|---|---|---|---|---|---|---|---|
| Q0127064N5R01 | 0.500 | 12.7mm | 2.50 | 3.57 | 5.77 | 1.000 Universal | 2 |
| Q0135067N5R01 | 0.531 | 13.3mm | 2.65 | 3.76 | 5.96 | 1.000 Universal | 2 |
| Q0143072N5R01 | 0.563 | 14.3mm | 2.81 | 3.79 | 5.99 | 1.000 Universal | 2 |
| Q0150075N5R01 | 0.594 | 15.1mm | 2.97 | 4.02 | 6.22 | 1.000 Universal | 2 |
| Q0159080N5R01 | 0.625 | 15.9mm | 3.13 | 4.25 | 6.46 | 1.000 Universal | 2 |
| Q0167083N5R01 | 0.657 | 16.7mm | 3.29 | 4.45 | 6.65 | 1.000 Universal | 2 |
| Q0175087N5R01 | 0.688 | 17.5mm | 3.44 | 4.69 | 6.89 | 1.000 Universal | 2 |
| Q0183091N5R01 | 0.719 | 18.3mm | 3.60 | 4.69 | 6.89 | 1.000 Universal | 2 |
| Q0191095N5R01 | 0.750 | 19.1mm | 3.75 | 4.88 | 7.09 | 1.000 Universal | 2 |
| Q0198099N5R01 | 0.781 | 19.8mm | 3.91 | 5.16 | 7.36 | 1.000 Universal | 2 |
| Q0206103N5R01 | 0.813 | 20.7mm | 4.07 | 5.35 | 7.56 | 1.000 Universal | 2 |
| Q0214107N5R01 | 0.844 | 21.4mm | 4.22 | 5.55 | 7.76 | 1.000 Universal | 2 |
| Q0222111N5R01 | 0.875 | 22.2mm | 4.38 | 5.55 | 7.76 | 1.000 Universal | 2 |
| Q0230115N6R01 | 0.906 | 23.0mm | 4.53 | 5.91 | 8.27 | 1.250 Universal | 2 |
| Q0238119N6R01 | 0.938 | 23.8mm | 4.69 | 6.14 | 8.50 | 1.250 Universal | 2 |
| Q0246123N6R01 | 0.969 | 24.6mm | 4.85 | 6.38 | 8.74 | 1.250 Universal | 2 |
| Q0250125N6R01 | 0.984 | 25.0mm | 4.92 | 6.38 | 8.74 | 1.250 Universal | 2 |
| Q0254127N6R01 | 1.000 | 25.4mm | 5.00 | 6.57 | 8.94 | 1.250 Universal | 2 |
| Q0262131N6R01 | 1.031 | 26.2mm | 5.16 | 6.57 | 8.94 | 1.250 Universal | 2 |
| Q0270135N6R01 | 1.063 | 27.0mm | 5.32 | 6.77 | 9.13 | 1.250 Universal | 2 |
| Q0278139N6R02 | 1.094 | 27.8mm | 5.47 | 7.00 | 9.36 | 1.250 Universal | 2 |
| Q0286143N6R02 | 1.125 | 28.6mm | 5.62 | 7.19 | 9.55 | 1.250 Universal | 2 |
| Q0294147N6R01 | 1.156 | 29.4mm | 5.78 | 7.49 | 9.86 | 1.250 Universal | 2 |
| Q0302151N6R01 | 1.187 | 30.1mm | 5.93 | 7.53 | 9.89 | 1.250 Universal | 2 |
| Q0310155N6R01 | 1.219 | 31.0mm | 6.09 | 7.75 | 10.12 | 1.250 Universal | 2 |
| Q0318159N6R01 | 1.250 | 31.8mm | 6.25 | 7.94 | 10.31 | 1.250 Universal | 2 |
| Q0325163N6R01 | 1.281 | 32.5mm | 6.40 | 8.17 | 10.53 | 1.250 Universal | 2 |
| Q0333167N6R01 | 1.312 | 33.3mm | 6.56 | 8.20 | 10.56 | 1.250 Universal | 2 |
| Q0341171N6R02 | 1.343 | 34.1mm | 6.71 | 8.39 | 10.75 | 1.250 Universal | 2 |
| Q0349175N6R02 | 1.375 | 34.9mm | 6.87 | 8.62 | 10.98 | 1.250 Universal | 2 |
| Q0357179N6R02 | 1.406 | 35.7mm | 7.03 | 8.85 | 11.21 | 1.250 Universal | 2 |
| Q0365182N6R01 | 1.437 | 36.5mm | 7.18 | 9.07 | 11.44 | 1.250 Universal | 2 |
| Q0373186N6R01 | 1.468 | 37.3mm | 7.34 | 9.11 | 11.47 | 1.250 Universal | 2 |
| Q0381191N6R01 | 1.500 | 38.1mm | 7.50 | 9.33 | 11.70 | 1.250 Universal | 2 |
| Q0389194N6R01 | 1.531 | 38.9mm | 7.65 | 9.52 | 11.89 | 1.250 Universal | 2 |
| Q0405202N6R01 | 1.594 | 40.5mm | 7.97 | 9.98 | 12.34 | 1.250 Universal | 2 |
| Q0413206N6R01 | 1.625 | 41.3mm | 8.12 | 10.01 | 12.37 | 1.250 Universal | 2 |
Пластины см. на странице 528. Оснастку см. на странице 529.
Рекомендации по эксплуатации см. на странице 686.
