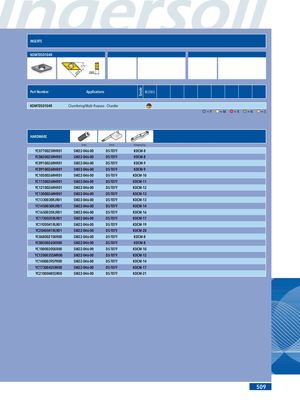

ПЛАСТИНЫ
| Номер детали | Размер .177/.2 | Угол 23° | Размер .085 |
|---|---|---|---|
| KOMT050104R | .177 | 23 | .085 / .2 |
| Номер детали | Применение | Марка IN2005 |
|---|---|---|
| KOMT050104R | Снятие фаски/многоцелевая обработка - фаска |
=P =M =K =N =S
КРЕПЁЖ
| Номер корпуса | Винт | Отвёртка | Ключ для зажима |
|---|---|---|---|
| YC0770025RHR01 | SM22-046-00 | DS-T07F | KDCM-8 |
| YC0820025RHR01 | SM22-046-00 | DS-T07F | KDCM-8 |
| YC0910026RHR01 | SM22-046-00 | DS-T07F | KDCM-9 |
| YC0910026RHR01 | SM22-046-00 | DS-T07F | KDCM-9 |
| YC1050026RHR01 | SM22-046-00 | DS-T07F | KDCM-10 |
| YC1130026RHR01 | SM22-046-00 | DS-T07F | KDCM-11 |
| YC1210026RHR01 | SM22-046-00 | DS-T07F | KDCM-12 |
| YC1300026RHR01 | SM22-046-00 | DS-T07F | KDCM-13 |
| YC1330030RJR01 | SM22-046-00 | DS-T07F | KDCM-13 |
| YC1450030RJR01 | SM22-046-00 | DS-T07F | KDCM-14 |
| YC1650035RJR01 | SM22-046-00 | DS-T07F | KDCM-16 |
| YC1730035RLR01 | SM22-046-00 | DS-T07F | KDCM-17 |
| YC1920041RLR01 | SM22-046-00 | DS-T07F | KDCM-19 |
| YC2040041RLR01 | SM22-046-00 | DS-T07F | KDCM-20 |
| YC0680021SKR00 | SM22-046-00 | DS-T07F | KDCM-8 |
| YC0830026SKR00 | SM22-046-00 | DS-T07F | KDCM-8 |
| YC1000030SKR00 | SM22-046-00 | DS-T07F | KDCM-10 |
| YC1200035SMR00 | SM22-046-00 | DS-T07F | KDCM-12 |
| YC1400039SPR00 | SM22-046-00 | DS-T07F | KDCM-14 |
| YC1730042SRR00 | SM22-046-00 | DS-T07F | KDCM-17 |
| YC2100048SSR00 | SM22-046-00 | DS-T07F | KDCM-21 |
