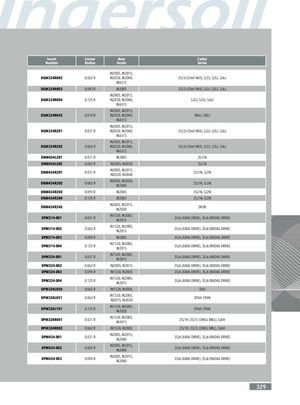

| Номер пластины | Радиус при вершине | Новая марка | Серия фрез |
|---|
| DGM324R002 | 0.062 R | IN2005, IN2015, IN2030, IN2040, IN6515 | 2SJ3J (Shell Mill), SJ2J, SJ5J, SJ6J |
| DGM324R003 | 0.093 R | IN2005 | 2SJ3J (Shell Mill), SJ2J, SJ5J, SJ6J |
| DGM324R004 | 0.125 R | IN2005, IN2015, IN2030, IN2040, IN6515 | SJ2J, SJ5J, SJ6J |
| DGM324R045 | 0.010 R | IN2005, IN2015, IN2030, IN2040, IN6515 | SN6J, SN2J |
| DGM324R201 | 0.031 R | IN2005, IN2015, IN2030, IN2040, IN6515 | 2SJ3J (Shell Mill), SJ2J, SJ5J, SJ6J |
| DGM324R202 | 0.062 R | IN2005, IN2015, IN2030, IN2040, IN6515 | 2SJ3J (Shell Mill), SJ2J, SJ5J, SJ6J |
| DNM434L201 | 0.031 R | IN2005 | 2SJ1N |
| DNM434L202 | 0.062 R | IN2005, IN2030 | 2SJ1N |
| DNM434R201 | 0.031 R | IN2005, IN2015, IN2030, IN2040 | 2SJ1N, SJ2N |
| DNM434R202 | 0.062 R | IN2005, IN2030, IN2040 | 2SJ1N, SJ2N |
| DNM434R203 | 0.093 R | IN2005 | 2SJ1N, SJ2N |
| DNM434R204 | 0.125 R | IN2005 | 2SJ1N, SJ2N |
| DNM434R245 | — | IN2005, IN2015, IN2030 | SN2N |
| DPM314-001 | 0.031 R | IN1530, IN2005, IN2015 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM314-002 | 0.062 R | IN1530, IN2005, IN2015 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM314-003 | 0.094 R | IN2005 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM314-004 | 0.125 R | IN1530, IN2005, IN2015 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM324-001 | 0.031 R | IN1530, IN2005, IN2015 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM324-002 | 0.062 R | IN2005, IN2015 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM324-003 | 0.094 R | IN1530, IN2005 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM324-004 | 0.125 R | IN1530, IN2005, IN2015 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM324L050 | 0.062 R | IN1530, IN2005 | SHU |
| DPM324L051 | 0.062 R | IN1530, IN2005, IN2015, IN2030 | SP6H, SP6N |
| DPM324L101 | 0.125 R | IN1530, IN2005, IN2030 | SP6H, SP6N |
| DPM324R001 | 0.031 R | IN1530, IN2005, IN2015 | 2SJ1H, 2SJ1L (SHELL MILL), SJ6H |
| DPM324R002 | 0.062 R | IN1530, IN2005 | 2SJ1H, 2SJ1L (SHELL MILL), SJ6H |
| DPM424-001 | 0.031 R | IN2005, IN2015, IN2040 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM424-002 | 0.062 R | IN2005, IN2015, IN2040 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
| DPM424-003 | 0.094 R | IN2005, IN2015, IN2040 | 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) |
