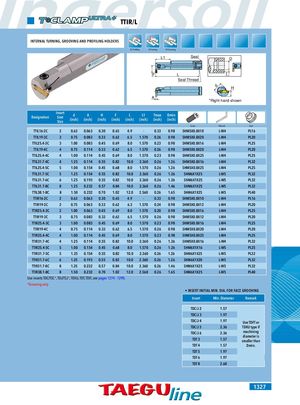

ДЕРЖАВКИ ДЛЯ ВНУТРЕННЕГО ТОЧЕНИЯ, НАРЕЗАНИЯ КАНАВОК И ПРОФИЛИРОВАНИЯ
Профилирование ID Точение ID Нарезание канавок ID
| Обозначение | Размер посадки вставки | d (дюйм) | A (дюйм) | H (дюйм) | F (дюйм) | L (дюйм) | L1 (дюйм) | Tmax (дюйм) | Dmin (дюйм) | Винт | Гаечный ключ | Уплотнение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTIL16-2C | 2 | 0.63 | 0.063 | 0.30 | 0.65 | 4.9 | — | 0.33 | 0.98 | SHM5X0.8X10 | L-W4 | PL16 |
| TTIL19-3C | 3 | 0.75 | 0.083 | 0.33 | 0.62 | 6.5 | 1.570 | 0.26 | 0.98 | SHM5X0.8X20 | L-W4 | PL20 |
| TTIL25.4-3C | 3 | 1.00 | 0.083 | 0.45 | 0.69 | 8.0 | 1.570 | 0.23 | 0.98 | SHM5X0.8X16 | L-W4 | PL25 |
| TTIL19-4C | 4 | 0.75 | 0.114 | 0.33 | 0.62 | 6.5 | 1.570 | 0.26 | 0.98 | SHM5X0.8X20 | L-W4 | PL20 |
| TTIL25.4-4C | 4 | 1.00 | 0.114 | 0.45 | 0.69 | 8.0 | 1.570 | 0.23 | 0.98 | SHM5X0.8X25 | L-W4 | PL25 |
| TTIL31.7-4C | 4 | 1.25 | 0.114 | 0.55 | 0.82 | 10.0 | 2.360 | 0.26 | 1.26 | SHM5X0.8X16 | L-W4 | PL32 |
| TTIL25.4-5C | 5 | 1.00 | 0.154 | 0.45 | 0.68 | 8.0 | 1.570 | 0.26 | 1.26 | SHM5X0.8X25 | L-W4 | PL25 |
| TTIL31.7-5C | 5 | 1.25 | 0.154 | 0.55 | 0.82 | 10.0 | 2.360 | 0.26 | 1.26 | SHM6X1X25 | L-W5 | PL32 |
| TTIL31.7-6C | 6 | 1.25 | 0.193 | 0.55 | 0.82 | 10.0 | 2.360 | 0.26 | 1.26 | SHM6X1X25 | L-W5 | PL32 |
| TTIL31.7-8C | 8 | 1.25 | 0.232 | 0.57 | 0.84 | 10.0 | 2.360 | 0.26 | 1.46 | SHM6X1X25 | L-W5 | PL32 |
| TTIL38.1-8C | 8 | 1.50 | 0.232 | 0.70 | 1.02 | 12.0 | 2.560 | 0.26 | 1.65 | SHM6X1X25 | L-W5 | PL40 |
| TTIR16-2C | 2 | 0.63 | 0.063 | 0.30 | 0.65 | 4.9 | — | 0.33 | 0.98 | SHM5X0.8X10 | L-W4 | PL16 |
| TTIR19-2C | 2 | 0.75 | 0.063 | 0.33 | 0.62 | 6.3 | 1.570 | 0.24 | 0.98 | SHM5X0.8X12 | L-W4 | PL20 |
| TTIR25.4-2C | 2 | 1.00 | 0.063 | 0.45 | 0.69 | 8.0 | 1.570 | 0.20 | 0.98 | SHM5X0.8X16 | L-W4 | PL25 |
| TTIR19-3C | 3 | 0.75 | 0.083 | 0.33 | 0.62 | 6.5 | 1.570 | 0.26 | 0.98 | SHM5X0.8X12 | L-W4 | PL20 |
| TTIR25.4-3C | 3 | 1.00 | 0.083 | 0.45 | 0.69 | 8.0 | 1.570 | 0.23 | 0.98 | SHM5X0.8X16 | L-W4 | PL25 |
| TTIR19-4C | 4 | 0.75 | 0.114 | 0.33 | 0.62 | 6.5 | 1.570 | 0.26 | 0.98 | SHM5X0.8X20 | L-W4 | PL20 |
| TTIR25.4-4C | 4 | 1.00 | 0.114 | 0.45 | 0.69 | 8.0 | 1.570 | 0.23 | 0.98 | SHM5X0.8X25 | L-W4 | PL25 |
| TTIR31.7-4C | 4 | 1.25 | 0.114 | 0.55 | 0.82 | 10.0 | 2.360 | 0.26 | 1.26 | SHM5X0.8X16 | L-W4 | PL32 |
| TTIR25.4-5C | 5 | 1.00 | 0.154 | 0.45 | 0.68 | 8.0 | 1.570 | 0.26 | 1.26 | SHM6X1X16 | L-W5 | PL25 |
| TTIR31.7-5C | 5 | 1.25 | 0.154 | 0.55 | 0.82 | 10.0 | 2.360 | 0.26 | 1.26 | SHM6X1X25 | L-W5 | PL32 |
| TTIR31.7-6C | 6 | 1.25 | 0.193 | 0.55 | 0.82 | 10.0 | 2.360 | 0.26 | 1.26 | SHM6X1X20 | L-W5 | PL32 |
| TTIR31.7-8C | 8 | 1.25 | 0.232 | 0.57 | 0.84 | 10.0 | 2.360 | 0.26 | 1.46 | SHM6X1X25 | L-W5 | PL32 |
| TTIR38.1-8C | 8 | 1.50 | 0.232 | 0.70 | 1.02 | 12.0 | 2.560 | 0.26 | 1.65 | SHM6X1X25 | L-W5 | PL40 |
Используйте вставки TDC/TSC*, TDJ/TSJ*, TDXU, TDT, TDIT, см. страницы 1274–1290.
*Только для нарезания канавок
Начальный минимальный диаметр вставки для торцевого нарезания канавок
| Вставка | Минимальный диаметр | Примечание |
|---|---|---|
| TDC/J 2 | 1.57 | Используйте тип TDFT или TDXU, если диаметр обработки меньше, чем Dmin. |
| TDC/J 3 | 1.97 | |
| TDC/J 4 | 1.97 | |
| TDC/J 5 | 2.36 | |
| TDC/J 6 | 2.36 | |
| TDT 3 | 1.57 | |
| TDT 4 | 1.57 | |
| TDT 5 | 1.97 | |
| TDT 6 | 1.97 | |
| TDT 8 | 2.60 |
