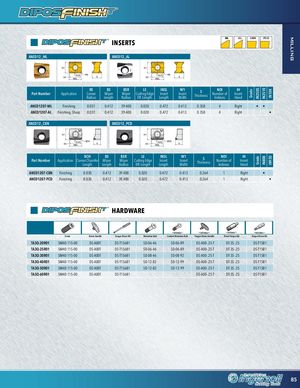

INSERTS ML AL CBN PCD
ANED12_ML ANED12_AL
W1 W1
BSR RE BSR RE
| BS | S | BS | S | ||
| INSL | INSL |
| RE | BS | BSR | LE | INSL | W1 | S | NOI | IH | ||||||||
| Part Number | Application | Corner | Wiper | Wiper | Cutting Edge | Insert | Insert | Thickness | Number of | Insert | ||||||
| Radius | Length | Radius | Eff. Length | Length | Width | Indexes | Hand | |||||||||
| ANED1207-ML | Finishing | 0.031 | 0.412 | 39.400 | 0.020 | 0.472 | 0.413 | 0.358 | 4 | Right | • • | |||||
| ANED1207-AL | Finishing, Sharp | 0.031 | 0.412 | 39.400 | 0.020 | 0.472 | 0.413 | 0.358 | 4 | Right | • |
ANED12_CBN ANED12_PCD
W1 W1
BSR BCH BSR BCH
| BS | S | BS | S | ||
| INSL | INSL |
| BCH | BS | BSR | LE | INSL | W1 | S | NOI | IH | ||||||||
| Part Number | Application | Corner Chamfer | Wiper | Wiper | Cutting Edge | Insert | Insert | Thickness | Number of | Insert | ||||||
| Length | Length | Radius | Eff. Length | Length | Width | Indexes | Hand | |||||||||
| ANED1207-CBN | Finishing | 0.030 | 0.412 | 39.400 | 0.020 | 0.472 | 0.413 | 0.264 | 1 | Right | • | |||||
| ANED1207-PCD | Finishing | 0.030 | 0.412 | 39.400 | 0.020 | 0.472 | 0.413 | 0.264 | 1 | Right | • |
HARDWARE
**OPTIONAL** **OPTIONAL** **OPTIONAL** **OPTIONAL**
| Screw Driver Handle | Torque Driver Bit | Retention Bolt | Coolant Retention Bolt | Torque Driver Handle | Preset Torque Bit | Torque Driver Bit | ||
| TA3Q-20R01 | SM40-115-00 | DS-A00T | DS-T156B1 | SD-06-46 | SD-06-89 | DS-A00-.25-T | DT-35-.25 | DS-T15B1 |
| TA3Q-25R01 | SM40-115-00 | DS-A00T | DS-T156B1 | SD-06-46 | SD-06-89 | DS-A00-.25-T | DT-35-.25 | DS-T15B1 |
| TA3Q-30R01 | SM40-115-00 | DS-A00T | DS-T156B1 | SD-08-46 | SD-08-92 | DS-A00-.25-T | DT-35-.25 | DS-T15B1 |
| TA3Q-40R01 | SM40-115-00 | DS-A00T | DS-T156B1 | SD-12-82 | SD-12-99 | DS-A00-.25-T | DT-35-.25 | DS-T15B1 |
| TA3Q-50R01 | SM40-115-00 | DS-A00T | DS-T156B1 | SD-12-82 | SD-12-99 | DS-A00-.25-T | DT-35-.25 | DS-T15B1 |
| TA3Q-60R01 | SM40-115-00 | DS-A00T | DS-T156B1 | - | - DS-A00-.25-T | DT-35-.25 | DS-T15B1 |
