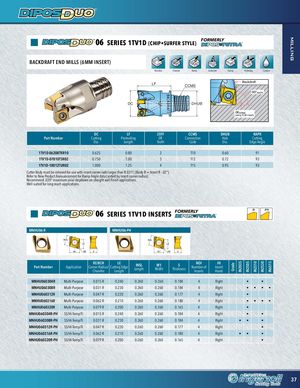

06 SERIES 1TV1D (CHIP•SURFER STYLE) FORMERLY milling BACKDRAFT END MILLS (6MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant Backdraft LF CCMS 90°KAPR DC DHUB .06APMX (using R.06 insert) DC LF ZEFF CCMS DHUB KAPR Part Number Cutting Protruding Eff. Connection Hub Cutting Dia. Length Teeth Code Dia. Edge Angle 1TV1D-06208TRR10 0.625 0.80 2 T10 0.60 91 1TV1D-07010TSR02 0.750 1.00 3 T12 0.72 93 1TV1D-10012TUR02 1.000 1.25 4 T15 0.95 93 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). Recommend .020” maximum axial stepdown on straight wall finish applications. Well suited for long reach applications. -R -PH 06 SERIES 1TV1D INSERTS FORMERLY MNHU06-R MNHU06-PH INSL INSL LE LE W1 RE S W1 RE S RE/BCH LE NOI IH IN2035 IN2505 IN2510 IN2530 IN6515 Grade INSL W1 S Part Number Application Corner Radius/ Cutting Edge Number of Insert Length Width Thickness Chamfer Length Inserts Hand MNHU060304R Multi-Purpose 0.015 R 0.240 0.260 0.260 0.184 4 Right • • MNHU060308R Multi-Purpose 0.031 R 0.230 0.260 0.260 0.184 4 Right • • • • MNHU060312R Multi-Purpose 0.047 R 0.220 0.260 0.260 0.177 4 Right • MNHU060316R Multi-Purpose 0.062 R 0.210 0.260 0.260 0.180 4 Right • • • • MNHU060320R Multi-Purpose 0.079 R 0.200 0.260 0.260 0.165 4 Right • MNHU060304R-PH SS/Hi-Temp/Ti 0.015 R 0.240 0.260 0.260 0.184 4 Right • • MNHU060308R-PH SS/Hi-Temp/Ti 0.031 R 0.230 0.260 0.260 0.184 4 Right • • • MNHU060312R-PH SS/Hi-Temp/Ti 0.047 R 0.220 0.260 0.260 0.177 4 Right • MNHU060316R-PH SS/Hi-Temp/Ti 0.062 R 0.210 0.260 0.260 0.180 4 Right • • • MNHU060320R-PH SS/Hi-Temp/Ti 0.079 R 0.200 0.260 0.260 0.165 4 Right • 37
