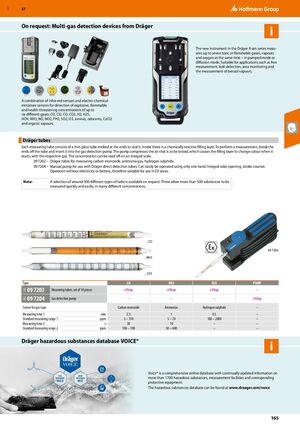

Средства индивидуальной защиты Hoffmann Group 2026 - страница 165

GBP 57 On request: Multi-gas detection devices from Dräger The new instrument in the Dräger X-am series meas- ures up to seven toxic or flammable gases, vapours and oxygen at the same time – in pumped mode or diffusion mode. Suitable for applications such as free measurement, leak detection, area monitoring and the measurement of benzol vapours. A combination of infra-red sensors and electro-chemical miniature sensors for detection of explosive, flammable and health-threatening concentrations of up to six different gases: O2, Cl2, CO, CO2, H2, H2S, HCN, NH3, NO, NO2, PH3, SO2, O3, amines, odorants, CoCl2 and organic vapours. Dräger tubes ​ Each measuring tube consists of a thin glass tube melted at the ends to seal it. Inside there is a chemically reactive filling layer. To perform a measurement, break the ends off the tube and insert it into the gas detection pump. The pump compresses the air that is to be tested, which causes the filling layer to change colour when it reacts with the respective gas. The concentration can be read off on an integral scale. 09 7202 – Dräger tubes for measuring carbon monoxide, ammonia gas, hydrogen sulphide. 09 7204 – Manual pump for use with Dräger direct detection tubes. Can easily be operated using only one hand. Integral tube opening, stroke counter. Operation without electricity or battery, therefore suitable for use in EX areas. Note: A selection of around 300 different types of tube is available on request. These allow more than 500 substances to be measured quickly and easily, in many different concentrations. _CO 09 7204 _NH3 _H2S Type CO NH3 H2S PUMP 09 7202 Measuring tubes, set of 10 pieces eShop eShop eShop – 09J 09 7204 Gas detection pump – – – eShop 09J Sensor for gas type Carbon monoxide Ammoniac Hydrogen sulphide – Measuring time 1 min 2.5 1 0.5 – Standard measuring range 1 ppm 5 – 150 5 – 70 100 – 2000 – Measuring time 2 s 30 10 – – Standard measuring range 2 ppm 100 – 700 50 – 600 – – Dräger hazardous substances database VOICE® Voice® is a comprehensive online database with continually updated information on more than 1700 hazardous substances, measurement facilities and corresponding protective equipment. The hazardous substances database can be found at www.draeger.com/voice 165
