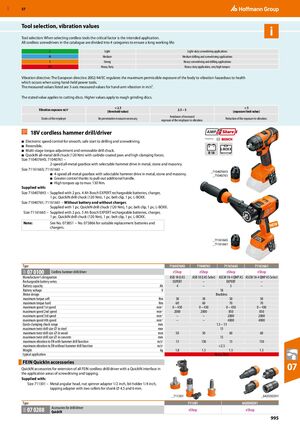

GBP 57 Tool selection, vibration values Tool selection: When selecting cordless tools the critical factor is the intended application. All cordless screwdrivers in the catalogue are divided into 4 categories to ensure a long working life: L Light Light-duty screwdriving applications M Medium Medium drilling and screwdriving applications S Strong Heavy screwdriving and drilling applications HD Heavy Duty Heavy-duty application, very high torques Vibration directive: The European directive 2002/44/EC regulates the maximum permissible exposure of the body to vibration hazardous to health which occurs when using hand-held power tools. The measured values listed are 3-axis measured values for hand-arm vibration in m/s². The stated value applies to cutting discs. Higher values apply to rough grinding discs. < 2.5 >5 Vibration exposure m/s2 2.5 − 5 (threshold value) (exposure limit value) Avoidance of increased Duties of the employer No preventative measures necessary. Reduction of the exposure to vibration. exposure of the employee to vibration. ​ 18V cordless hammer drill/driver ■ Electronic speed control for smooth, safe start to drilling and screwdriving. ■ Reversible. ■ Multi-stage torque adjustment and removable drill chuck. L-BOXX B 18 ■ QuickIN all-metal drill chuck (120 Nm) with carbide-coated jaws and high clamping forces. Size 7104076H3; 71040761 – 2-speed all-metal gearbox with selectable hammer drive in metal, stone and masonry. Size 71161665; 71161661 – _7104076H3 ■ 4-speed all-metal gearbox with selectable hammer drive in metal, stone and masonry. _71040761 ■ Greater control thanks to pull-out additional handle. ■ High torques up to max. 130 Nm. Supplied with: Size 7104076H3 – Supplied with 2 pcs. 4 Ah Bosch EXPERT rechargeable batteries, charger, 1 pc. QuickIN drill chuck (120 Nm), 1 pc. belt clip, 1 pc. L-BOXX. Size 71040761; 71161661 – Without battery and without charger. Supplied with 1 pc. QuickIN drill chuck (120 Nm), 1 pc. belt clip, 1 pc. L-BOXX. Size 71161665 – Supplied with 2 pcs. 5 Ah Bosch EXPERT rechargeable batteries, charger, 1 pc. QuickIN drill chuck (120 Nm), 1 pc. belt clip, 1 pc. L-BOXX. Note: See No. 073851 − No. 073866 for suitable replacement batteries and chargers. NEW _71161665 _71161661 Type 7104076H3 71040761 71161665 71161661 07 0100 Cordless hammer drill/driver eShop eShop eShop eShop 03F Manufacturer‘s designation ASB 18 Q AS ASB 18 Q AS Select ASCM 18-4 QMP AS ASCM 18-4 QMP AS Select Rechargeable battery series EXPERT – EXPERT – Battery capacity Ah 4 – 5 – Battery voltage V 18 Motor design Brushless maximum torque soft Nm 38 38 50 50 maximum torque hard Nm 60 60 70 70 maximum speed 1st speed min-1 0 – 450 0 – 450 0 – 430 0 – 430 maximum speed 2nd speed min-1 2000 2000 850 850 maximum speed 3rd speed min-1 – – 2000 2000 maximum speed 4th speed min-1 – – 4000 4000 Quick-clamping chuck range mm 1.5 – 13 maximum twist drill size ⌀ in steel mm 13 maximum twist drill size ⌀ in wood mm 50 50 60 60 maximum twist drill size ⌀ in concrete mm 13 maximum vibration to EN with hammer drill function m/s2 13 130 13 130 maximum vibration to EN without hammer drill function m/s2 <2.5 Weight kg 1.8 1.5 1.5 1.5 typical application Heavy Duty FEIN QuickIn accessories ​ QuickIN accessories for extension of all FEIN cordless drill/driver with a QuickIN interface in the application areas of screwdriving and tapping. 07 Supplied with: Size 711301 – Metal angular head, nut spinner adapter 1/2 inch, bit holder 1/4 inch, tapping adapter with two collets for shank ⌀ 4.5 and 6 mm. _711301 _6420302H1 Type 711301 6420302H1 Accessories for drill/driver 07 0208 03G eShop eShop QuickIN 995
