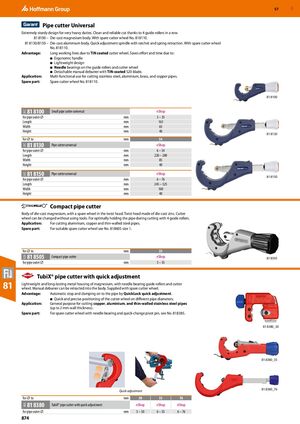

GBP 57 ​ Pipe cutter Universal Extremely sturdy design for very heavy duties. Clean and reliable cut thanks to 4 guide rollers in a row. 81 8100 – Die-cast magnesium body. With spare cutter wheel No. 818110. 81 8130/8150 – Die-cast aluminium body. Quick adjustment spindle with ratchet and spring retraction. With spare cutter wheel No. 818110. Advantage: Long working lives due to TiN coated cutter wheel. Saves effort and time due to: ■ Ergonomic handle ■ Lightweight design ■ Needle bearings on the guide rollers and cutter wheel ■ Detachable manual deburrer with TiN-coated S20 blade. Application: Multi-functional use for cutting stainless steel, aluminium, brass, and copper pipes. Spare part: Spare cutter wheel No. 818110. 81 8100 81 8100 Small pipe cutter universal eShop 81C for pipe outer ⌀ mm 3 – 35 Length mm 165 Width mm 65 Height mm 40 81 8130 for ⌀ to mm 54 81 8130 Pipe cutter universal eShop 81C for pipe outer ⌀ mm 6 – 54 Length mm 220 – 280 Width mm 85 Height mm 40 81 8150 Pipe cutter universal eShop 81C 81 8150 for pipe outer ⌀ mm 6 – 76 Length mm 245 – 325 Width mm 100 Height mm 40 ​ Compact pipe cutter Body of die-cast magnesium, with a spare wheel in the twist head. Twist head made of die-cast zinc. Cutter wheel can be changed without using tools. For optimally holding the pipe during cutting with 4 guide rollers. Application: For cutting aluminium, copper and thin-walled steel pipes. Spare part: For suitable spare cutter wheel see No. 818605 size 1. for ⌀ to mm 35 81 8505 Compact pipe cutter eShop 83A 81 8505 for pipe outer ⌀ mm 3 – 35 ​ TubiX® pipe cutter with quick adjustment 81 Lightweight and long-lasting metal housing of magnesium, with needle bearing guide rollers and cutter wheel. Manual deburrer can be retracted into the body. Supplied with spare cutter wheel. Advantage: Automatic stop and clamping on to the pipe by QuickLock quick adjustment. ■ Quick and precise positioning of the cutter wheel on different pipe diameters. Application: General purpose for cutting copper, aluminium, and thin-walled stainless steel pipes (up to 2 mm wall thickness). Spare part: For spare cutter wheel with needle bearing and quick-change pivot pin, see No. 818385. 81 8380_30 81 8380_35 81 8380_76 Quick adjustment for ⌀ to mm 30 35 76 81 8380 86A TubiX® pipe cutter with quick adjustment eShop eShop eShop for pipe outer ⌀ mm 3 – 30 6 – 35 6 – 76 874
