Ручные и измерительные инструменты Hoffmann Group 2026 - страница 871

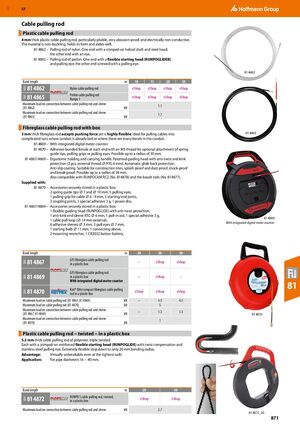

GBP 57 ​Cable pulling rod Plastic cable pulling rod ​ 4 mm thick plastic cable pulling rod, particularly pliable, very abrasion-proof, and electrically non-conductive. The material is non-buckling, holds its form and slides well. 81 4862 – Pulling rod of nylon. One end with a crimped-on helical shaft and steel head; the other end with an eye. 81 4865 – Pulling rod of perlon. One end with a flexible starting head (RUNPOGLIDER) and pulling eye; the other end screwed with a pulling eye. 81 4862 Band length m 10 15 20 30 81 4862 86A Nylon cable pulling rod eShop eShop eShop eShop Perlon cable pulling rod 81 4865 86A eShop eShop eShop eShop Runpo 1 Maximum load on connection between cable pulling rod and sleeve 1.1 (81 4862) kN Maximum load on connection between cable pulling rod and sleeve 1.7 (81 4865) kN Fibreglass cable pulling rod with box ​ 3 mm thick fibreglass rod accepts pushing force yet is highly flexible; ideal for pulling cables into 81 4865 complicated runs where conduit is already laid or where there are many bends in the conduit. 81 4869 – With integrated digital meter counter. 81 4870 – Adhesive-bonded ferrule at each end with an M5 thread for optional attachment of spring guide tips, pulling grips or pulling eyes. Possible up to a radius of 30 mm. 81 4867/4869 – Ergonomic holding and carrying handle. Patented guiding head with anti-twist and kink protection (2 pcs. external thread ⌀ RTG 6 mm). Automatic glide back protection. Anti-slip coating. Suitable for construction sites, splash-proof and dust-proof, shock-proof and break-proof. Possible up to a radius of 38 mm. Also compatible with RUNPOCAM RC2 (No. 814878) and the basalt rods (No. 814877). Supplied with: 81 4870 – Accessories securely stored in a plastic box: 2 spring guide tips ⌀ 7 and ⌀ 10 mm, 5 pulling eyes, 1 pulling grip for cable ⌀ 6 - 9 mm, 5 starting/end joints, 3 coupling joints, 1 special adhesive 3 g, 1 power disc. 81 4867/4869 – Accessories securely stored in a plastic box: 1 flexible guiding head (RUNPOGLIDE) with anti-twist protection, 1 anti-kink end sleeve RTG ⌀ 6 mm, 1 pull-in aid, 1 special adhesive 3 g, 81 4869 1 cable pull loop (⌀ 14 mm external), With integrated digital meter counter 6 adhesive sleeves ⌀ 3 mm, 3 pull eyes ⌀ 7 mm, 1 starting bulb ⌀ 11 mm, 1 connecting sleeve, 2 mounting wrenches, 1 CR2032 button battery. Band length m 20 30 50 GF3 fibreglass cable pulling rod 81 4867 86A – eShop eShop in a plastic box GF3 fibreglass cable pulling rod 81 4869 86A in a plastic box – eShop – With integrated digital meter counter 81 4870 Kati® Blitz compact fibreglass cable pulling 81 86A eShop eShop eShop rod in a plastic box Maximum load on cable pulling rod (81 4867, 81 4869) kN – 4.5 4.5 Maximum load on cable pulling rod (81 4870) kN 5 Maximum load on connection between cable pulling rod and sleeve – 1.3 1.3 (81 4867, 81 4869) kN 81 4870 Maximum load on connection between cable pulling rod and sleeve 1 (81 4870) kN Plastic cable pulling rod − twisted − in a plastic box ​ 5.3 mm thick cable pulling rod of polyester, triple twisted. Each with a crimped-on reinforced flexible starting head (RUNPOGLIDE) with twist compensation and stainless steel pulling eye. Extremely flexible strip down to only 20 mm bending radius. Advantage: Virtually unbreakable even at the tightest radii. Application: For pipe diameters 16 − 40 mm. Band length m 20 30 RUNPO 5 cable pulling rod, twisted, 81 4872 86A eShop eShop in a plastic box Maximum load on connection between cable pulling rod and sleeve kN 2.7 81 4872_20 871
