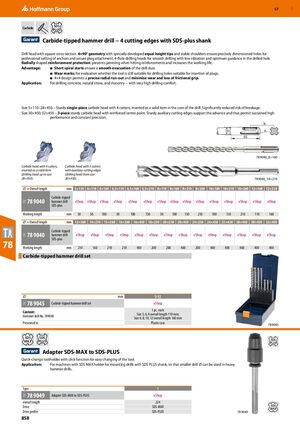

GBP 57 Carbide SDS PLUS Carbide-tipped hammer drill − 4 cutting edges with SDS-plus shank Drill head with square cross-section. 4×90° geometry with specially developed equal height tips and stable shoulders ensure precisely dimensioned holes for professional setting of anchors and secure plug attachment. 4-flute drilling heads for smooth drilling with low vibration and optimum guidance in the drilled hole. Radially shaped reinforcement protection: prevents jamming when hitting reinforcements and increases the working life. Advantage: ■ Short spiral starts ensure a smooth evacuation of the drill dust. ■ Wear marks: for evaluation whether the tool is still suitable for drilling holes suitable for insertion of plugs. ■ 4×4 design permits a precise radial run-out and minimise wear and loss of frictional grip. Application: For drilling concrete, natural stone, and masonry − with very high drilling comfort. Size 5×110–28×450 – Sturdy single-piece carbide head with 4 cutters, inserted as a solid item in the core of the drill. Significantly reduced risk of breakage. Size 30×450; 32×450 – 3-piece sturdy carbide head with reinforced centre point. Sturdy auxiliary cutting edges support the advance and thus permit sustained high performance and constant precision. b 10 a 50 78 9040_8×160 Carbide head with 4 cutters, Carbide head with 3 cutters inserted as a solid item with auxiliary cutting edges (drilling head up to size (drilling head from size 28×450). 30×450). 78 9040_14×210 ⌀ × Overall length mm 5×110 6×110 6×160 6,5×110 6,5×160 6,5×210 8×110 8×160 8×210 8×260 10×160 10×210 10×260 12×160 12×210 Carbide-tipped 78 9040 hammer drill eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 71C SDS-plus Working length mm 50 50 100 50 100 150 50 100 150 210 100 150 210 110 160 ⌀ × Overall length mm 12×260 14×210 15×260 16×260 16×450 18×250 20×250 20×450 24×250 24×450 25×450 28×450 30×450 32×450 Carbide-tipped 78 9040 hammer drill eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 71C SDS-plus 78 Working length mm 210 160 210 210 400 200 200 400 200 400 400 400 400 400 Carbide-tipped hammer drill set ​ ⌀ mm 5-12 78 9045 Carbide-tipped hammer drill set eShop 71C 1 pc. each Content: Size 5; 6; 8 overall length 110 mm; Hammer drill No. 789040 Size 6; 8; 10; 12 overall length 160 mm Presented in Plastic case 78 9045 SDS SDS MAX PLUS Adapter SDS-MAX to SDS-PLUS Quick-change toolholder with click function for easy changing of the tool. Application: For machines with SDS MAX holder for mounting drills with SDS PLUS shank, so that smaller drill ⌀ can be used in heavy hammer drills. Type 1 78 9049 Adapter SDS-MAX to SDS-PLUS eShop 71C overall length 224 Drive SDS-MAX Drive profile SDS-PLUS 78 9049 858
