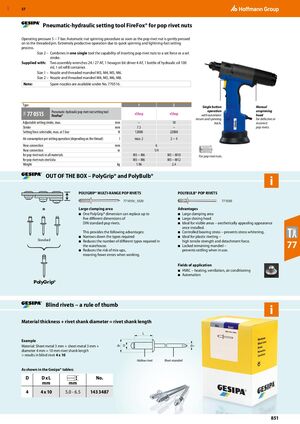

GBP 57 ​ Pneumatic-hydraulic setting tool FireFox® for pop rivet nuts Operating pressure 5 − 7 bar. Automatic nut spinning procedure as soon as the pop rivet nut is gently pressed on to the threaded pin. Extremely productive operation due to quick spinning and lightning-fast setting process. Size 2 – Combines in one single tool the capability of inserting pop rivet nuts to a set force or a set stroke. Supplied with: Two assembly wrenches 24 / 27 AF, 1 hexagon bit driver 4 AF, 1 bottle of hydraulic oil 100 ml, 1 oil refill container. Size 1 – Nozzle and threaded mandrel M3, M4, M5, M6. Size 2 – Nozzle and threaded mandrel M4, M5, M6, M8. Note: Spare nozzles are available under No. 770516. Type 1 2 Single button Manual Pneumatic-hydraulic pop rivet nut setting tool operation unspinning 77 0515 eShop eShop 74A FireFox® with automatic head return and spinning for defective or Adjustable setting stroke, max. mm – 10 back. incorrect Stroke mm 7.5 – pop rivets. Setting force selectable, max. at 5 bar N 12000 22000 Air consumption per setting operation (depending on the thread) l max. 2 2−4 Hose connection mm 6 Hose connection in 1/4 for pop rivet nuts in all materials M3 − M6 M3 − M10 For pop rivet nuts. for pop rivet nuts steel/alu M3 − M6 M3 − M12 Weight kg 1.96 2.4 OUT OF THE BOX – PolyGrip® and PolyBulb® POLYGRIP® MULTI-RANGE POP RIVETS POLYBULB® POP RIVETS 77 1010/_1020 77 1030 Large clamping area Advantages ■ One PolyGrip® dimension can replace up to ■ Large clamping area five different dimensions of ■ Large closing head DIN standard pop rivets. ■ Ideal for visible areas – aesthetically appealing appearance once installed. This provides the following advantages: ■ Controlled bearing stress – prevents stress whitening. ■ Narrows down the types required ■ Ideal for plastic riveting – ■ Reduces the number of different types required in high tensile strength and detachment force. the warehouse. ■ Reduces the risk of mix-ups, ■ Locked remaining mandrel – prevents rattling when in use. 77 meaning fewer errors when working. Fields of application ■ HVAC – heating, ventilation, air conditioning ■ Automation Blind rivets – a rule of thumb Material thickness + rivet shank diameter = rivet shank length L Example Material: Sheet metal 3 mm + sheet metal 3 mm + dk D dm diameter 4 mm = 10 mm rivet shank length > results in blind rivet 4 x 10 Hollow rivet Rivet mandrel As shown in the Gesipa® tables: D DxL ▲ ▲ No. mm mm 4 4 x 10 5.0 - 6.5 143 3487 851
