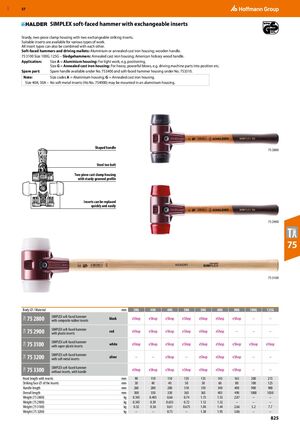

GBP 57 ​ SIMPLEX soft-faced hammer with exchangeable inserts Sturdy, two-piece clamp housing with two exchangeable striking inserts. Suitable inserts are available for various types of work. All insert types can also be combined with each other. Soft-faced hammers and driving mallets: Aluminium or annealed cast iron housing; wooden handle. 75 3100 Size 100G; 125G – Sledgehammers: Annealed cast iron housing; American hickory wood handle. Application: Size A = Aluminium housing: For light work, e.g. positioning. Size G = Annealed cast iron housing: For heavy, powerful blows, e.g. driving machine parts into position etc. Spare part: Spare handle available under No. 753400 and soft-faced hammer housing under No. 753310. Note: Size codes A = Aluminium housing; G = Annealed cast iron housing. Size 40A; 50A – No soft metal inserts (Ho No. 754000) may be mounted in an aluminium housing. Shaped handle ​ 75 2800 Steel tee-bolt Two-piece cast clamp housing with sturdy grooved profile Inserts can be replaced quickly and easily ​ 75 2900 75 ​ 75 3100 Body ⌀ / Material mm 30G 40A 40G 50A 50G 60G 80G 100G 125G SIMPLEX soft-faced hammer 75 2800 73W black eShop eShop eShop eShop eShop eShop eShop – – with composite rubber inserts SIMPLEX soft-faced hammer 75 2900 73W red eShop eShop eShop eShop eShop eShop – – – with plastic inserts SIMPLEX soft-faced hammer 75 3100 73W white eShop eShop eShop eShop eShop eShop eShop eShop eShop with super-plastic inserts SIMPLEX soft-faced hammer 75 3200 73W silver – – eShop – eShop eShop eShop – – with soft metal inserts SIMPLEX soft-faced hammer 75 3300 73W eShop eShop eShop eShop eShop eShop eShop – – without inserts, with handle Head length with inserts mm 90 110 110 135 135 145 165 200 215 Striking face ⌀ of the inserts mm 30 40 40 50 50 60 80 100 125 Handle length mm 260 280 280 310 310 340 400 900 900 Overall length mm 300 330 330 365 365 405 490 1000 1050 Weight (75 2800) kg 0.345 0.405 0.66 0.74 1.15 1.55 2.87 – – Weight (75 2900) kg 0.345 0.39 0.635 0.72 1.12 1.52 – – – Weight (75 3100) kg 0.32 0.36 0.61 0.675 1.04 1.44 2.66 5.2 7.7 Weight (75 3200) kg – – 0.75 – 1.38 1.95 3.86 – – 825
