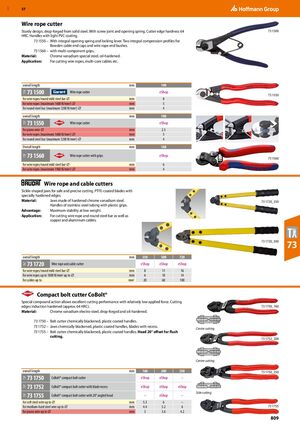

GBP 57 ​Wire rope cutter Sturdy design, drop-forged from solid steel. With screw joint and opening spring. Cutter edge hardness 64 73 1500 HRC. Handles with light PVC coating. 73 1550 – With integral opening spring and locking lever. Two integral compression profiles for Bowden cable end caps and wire rope end bushes. 73 1560 – with multi-component grips. Material: Chrome vanadium special steel, oil-hardened. Application: For cutting wire ropes, multi-core cables etc. overall length mm 190 73 1500 Wire rope cutter eShop 71B 73 1550 for wire ropes/round mild steel bar ⌀ mm 8 for wire ropes (maximum 1600 N/mm2) ⌀ mm 5 for round steel bar (maximum 1200 N/mm2) ⌀ mm 4 overall length mm 190 73 1550 Wire rope cutter eShop 73F for piano wire ⌀ mm 2.5 for wire ropes (maximum 1600 N/mm2) ⌀ mm 5 for round steel bar (maximum 1200 N/mm2) ⌀ mm 4 Overall length mm 160 73 1560 Wire rope cutter with grips eShop 73F 73 1560 for wire ropes/round mild steel bar ⌀ mm 6 for wire ropes (maximum 1960 N/mm2) ⌀ mm 4 ​ Wire rope and cable cutters Sickle-shaped jaws for safe and precise cutting. PTFE-coated blades with specially hardened edges. Material: Jaws made of hardened chrome vanadium steel. 73 1720_350 Handles of stainless steel tubing with plastic grips. Advantage: Maximum stability at low weight. Application: For cutting wire rope and round steel bar as well as copper and aluminium cables. 73 73 1720_500 overall length mm 350 500 720 73 1720 Wire rope and cable cutter eShop eShop eShop 76C for wire ropes/round mild steel bar ⌀ mm 8 11 16 for wire ropes up to 1800 N/mm2 up to ⌀ mm 6 10 14 for cables up to mm2 20 60 100 ​ Compact bolt cutter CoBolt® Special compound action allows excellent cutting performance with relatively low applied force. Cutting edges induction hardened (approx. 64 HRC). 73 1750_160 Material: Chrome vanadium electro-steel, drop-forged and oil-hardened. 73 1750 – Bolt cutter chemically blackened, plastic coated handles. 73 1752 – Jaws chemically blackened, plastic coated handles, blades with recess. Centre cutting 73 1755 – Bolt cutter chemically blackened, plastic coated handles. Head 20° offset for flush cutting. 73 1752_200 Centre cutting overall length mm 160 200 250 73 1750_250 73 1750 CoBolt® compact bolt cutter eShop eShop – 73F 73 1752 CoBolt® compact bolt cutter with blade recess eShop eShop eShop 73F Side cutting 73 1755 CoBolt® compact bolt cutter with 20° angled head – eShop – 73F for soft steel wire up to ⌀ mm 5.3 6 – for medium-hard steel wire up to ⌀ mm 4.4 5.2 6 73 1755 for piano wire up to ⌀ mm 3 3.6 4.2 809
