Ручные и измерительные инструменты Hoffmann Group 2026 - страница 807

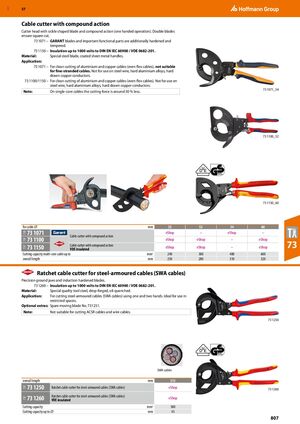

GBP 57 ​Cable cutter with compound action Cutter head with sickle shaped blade and compound action (one handed operation). Double blades ensure square cut. 73 1071 – GARANT blades and important functional parts are additionally hardened and tempered. 73 1150 – Insulation up to 1000 volts to DIN EN IEC 60900 / VDE 0682-201. Material: Special steel blade, coated sheet metal handles. Application: 73 1071 – For clean cutting of aluminium and copper cables (even flex cables), not suitable for fine-stranded cables. Not for use on steel wire, hard aluminium alloys, hard drawn copper conductors. 73 1100/1150 – For clean cutting of aluminium and copper cables (even flex cables). Not for use on steel wire, hard aluminium alloys, hard drawn copper conductors. 73 1071_54 Note: On single-core cables the cutting force is around 30 % less. 73 1100_52 73 1150_60 for cable ⌀ mm 32 52 54 60 73 1071 eShop – eShop – 73F 71B Cable cutter with compound action 73 1100 eShop eShop – eShop 73 1150 Cable cutter with compound action eShop eShop – eShop 73 73F VDE insulated Cutting capacity multi-core cable up to mm2 240 380 480 600 overall length mm 250 280 310 320 ​ Ratchet cable cutter for steel-armoured cables (SWA cables) Precision ground jaws and induction hardened blades. 73 1260 – Insulation up to 1000 volts to DIN EN IEC 60900 / VDE 0682-201. Material: Special quality tool steel, drop-forged, oil-quenched. Application: For cutting steel-armoured cables (SWA cables) using one and two hands. Ideal for use in restricted spaces. Optional extras: Spare moving blade No. 731251. Note: Not suitable for cutting ACSR cables and wire cables. 73 1250 SWA cables overall length mm 315 73 1250 Ratchet cable cutter for steel-armoured cables (SWA cables) eShop 73F 73 1260 Ratchet cable cutter for steel-armoured cables (SWA cables) 73 1260 eShop 73F VDE insulated Cutting capacity mm2 380 Cutting capacity up to ⌀ mm 45 807
