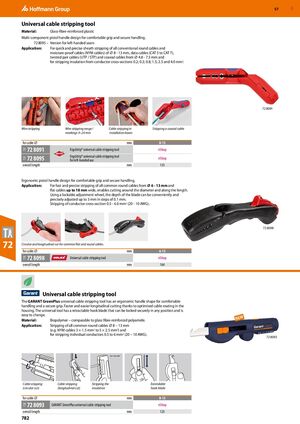

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 782

GBP 57 ​Universal cable stripping tool Material: Glass-fibre-reinforced plastic Multi-component pistol handle design for comfortable grip and secure handling. 72 8095 – Version for left-handed users Application: For quick and precise sheath stripping of all conventional round cables and moisture-proof cables (NYM cables) of ⌀ 8 - 13 mm, data cables (CAT 5 to CAT 7), twisted pair cables (UTP / STP) and coaxial cables from ⌀ 4.8 - 7.5 mm and for stripping insulation from conductor cross-sections 0.2; 0.3; 0.8; 1.5; 2.5 and 4.0 mm2. 72 8091 Wire stripping Wire stripping range / Cable stripping in Stripping a coaxial cable markings 4–24 mm installation boxes for cable ⌀ mm 8-13 72 8091 ErgoStrip® universal cable stripping tool eShop 73F ErgoStrip® universal cable stripping tool 72 8095 eShop 73F for left-handed use overall length mm 135 Ergonomic pistol handle design for comfortable grip and secure handling. Application: For fast and precise stripping of all common round cables from ⌀ 6 - 13 mm and flat cables up to 18 mm wide, enables cutting around the diameter and along the length. Using a lockable adjustment wheel, the depth of the blade can be conveniently and precisely adjusted up to 3 mm in steps of 0.1 mm. Stripping of conductor cross-section 0.5 - 6.0 mm2 (20 - 10 AWG). 72 8098 72 Circular and longitudinal cut for common flat and round cables. for cable ⌀ mm 6-13 72 8098 Universal cable stripping tool eShop 72B overall length mm 164 Universal cable stripping tool The GARANT GreenPlus universal cable stripping tool has an ergonomic handle shape for comfortable handling and a secure grip. Faster and easier longitudinal cutting thanks to optimised cable routing in the housing. The universal tool has a retractable hook blade that can be locked securely in any position and is easy to change. Material: Biopolymer – comparable to glass fibre-reinforced polyamide. NEW Application: Stripping of all common round cables ⌀ 8 – 13 mm (e.g. NYM cables 3 × 1.5 mm2 to 5 × 2.5 mm2) and for stripping individual conductors 0.5 to 6 mm2 (20 – 10 AWG). 72 8093 0,5 - 6,0 mm² Cable stripping Cable stripping Stripping the Extendable (circular cut) (longitudinal cut) insulation hook blade for cable ⌀ mm 8-13 72 8093 GARANT GreenPlus universal cable stripping tool eShop 72B overall length mm 125 782
