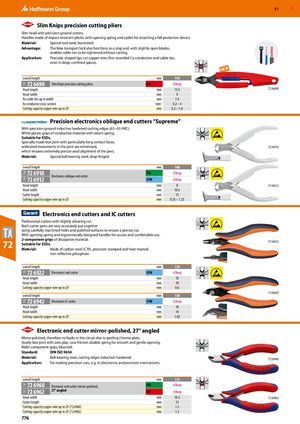

GBP 57 Slim Knips precision cutting pliers Slim head with precision ground cutters. Handles made of impact-resistant plastic with opening spring and eyelet for attaching a fall protection device. Material: Special tool steel, burnished. Advantage: The blue transport lock also functions as a stop and, with slightly open blades, enables cable ties to be tightened without cutting. Application: Precisely shaped tips cut copper wire, fine-stranded Cu conductors and cable ties, even in deep, confined spaces. NEW overall length mm 150 72 6690 Slim Knips precision cutting pliers kW eShop 73F Head length mm 13.5 72 6690 Head width mm 9 for cable ties up to width mm 7.6 for conductor cross-section mm2 0.2 – 4 Cutting capacity copper wire up to ⌀ mm 0.2 – 1.6 Precision electronics oblique end cutters “Supreme” With precision ground inductive hardened cutting edges (63−65 HRC). White plastic grips of conductive material with return spring. Suitable for ESDs. Specially made box joint with particularly long contact faces, undesired movements in the joint are minimised, 72 6910 which ensures extremely precise axial alignment of the jaws. Material: Special ball bearing steel, drop-forged. overall length mm 108 72 6910 73M 73M FW eShop Electronics oblique end cutter 72 6912 SFW eShop Head length mm 8 72 6912 Head width mm 10.5 Cutter length mm 15 Cutting capacity copper wire up to ⌀ mm 0.35 – 1.25 Electronics end cutters and IC cutters Professional cutters with slightly shearing cut. Both cutter parts are very accurately put together using carefully machined holes and polished surfaces to ensure a precise cut. With opening spring and ergonomically designed handles for secure and comfortable use. 2-component grips of dissipative material. 72 72 6922 Suitable for ESDs. Material: Made of carbon steel (C70), precision stamped and heat-treated, non-reflective phosphate. overall length mm 130 72 6922 Electronics end cutter SFW eShop 71B Head length mm 10 Head width mm 10 Cutting capacity copper wire up to ⌀ mm 0.6 72 6942 overall length mm 130 72 6942 Electronics IC cutter SFW eShop 71B Head length mm 18 Head width mm 14 Cutting capacity copper wire up to ⌀ mm 1.02 ​ Electronic end cutter mirror-polished, 27° angled Mirror polished, therefore no faults in the circuit due to peeling chrome plate. Sturdy box joint with zero play. Low-friction double spring for smooth and gentle opening. Multi-component grips, blue/red. Standard: DIN ISO 9654 Material: Ball-bearing steel, cutting edges induction hardened. 72 6960 Application: For making precision cuts, e.g. in electronics and precision mechanisms. overall length mm 115 72 6960 FW eShop 73F 73F Electronic end cutter, mirror-polished, 27° angled 72 6962 kW eShop Head width mm 10.5 72 6962 Cutter length mm 12 Cutting capacity copper wire up to ⌀ (72 6960) mm 1.5 Cutting capacity copper wire up to ⌀ (72 6962) mm 1.3 776
