Ручные и измерительные инструменты Hoffmann Group 2026 - страница 770

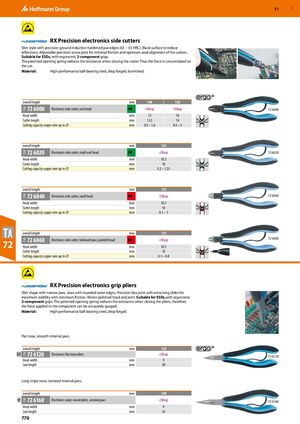

GBP 57 RX Precision electronics side cutters Slim style with precision ground induction hardened jaw edges (63 − 65 HRC). Black surface to reduce reflections. Adjustable precision screw joint for minimal friction and optimum axial alignment of the cutters. Suitable for ESDs, with ergonomic 2-component grips. The patented opening spring reduces the resistance when closing the cutter. Thus the force is concentrated on the cut. Material: High-performance ball-bearing steel, drop forged, burnished. overall length mm 140 150 72 6000 73M Electronics side cutter, oval head FW eShop eShop 72 6000 Head width mm 13 16 Cutter length mm 12.5 16 Cutting capacity copper wire up to ⌀ mm 0.3 – 1.6 0.4 – 2 overall length mm 135 72 6020 73M Electronics side cutter, small oval head FW eShop 72 6020 Head width mm 10.5 Cutter length mm 10 Cutting capacity copper wire up to ⌀ mm 0.2 – 1.25 overall length mm 135 72 6040 72 6040 73M Electronics side cutter, small head kW eShop Head width mm 10.5 Cutter length mm 10 Cutting capacity copper wire up to ⌀ mm 0.1 – 1 overall length mm 135 72 6060 72 6060 73M Electronics side cutter, hollowed jaws, pointed head kW eShop 72 Head width Cutter length mm mm 10.5 10 Cutting capacity copper wire up to ⌀ mm 0.1 – 0.8 RX Precision electronics grip pliers Slim shape with narrow jaws. Jaws with rounded outer edges. Precision box joint with extra long slides for maximum stability with minimum friction. Mirror-polished head and joint. Suitable for ESDs,with ergonomic 2-component grips. The patented opening spring reduces the resistance when closing the pliers, therefore the force applied to the component can be accurately gauged. Material: High-performance ball-bearing steel, drop forged. Flat nose, smooth internal jaws. overall length mm 150 72 6120 73M Electronics flat-nose pliers eShop 72 6120 Head width mm 9 Jaw length mm 20 Long snipe nose, serrated internal jaws. overall length mm 150 72 6160 73M Electronics snipe-nosed pliers, serrated jaws eShop 72 6160 Head width mm 9 Jaw length mm 32 770
