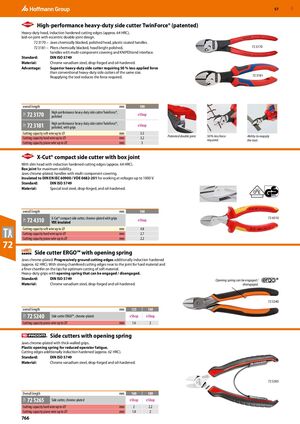

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 766

GBP 57 ​ High-performance heavy-duty side cutter TwinForce® (patented) Heavy-duty head, induction hardened cutting edges (approx. 64 HRC), laid-on joint with eccentric double-joint design. 72 3170 – Jaws chemically blacked, polished head, plastic coated handles. 72 3181 – Pliers chemically blacked, head bright polished, ​72 3170 handles with multi-component covering and KNIPEXtend interface. Standard: DIN ISO 5749 Material: Chrome vanadium steel, drop-forged and oil-hardened. Advantage: Superior heavy-duty side cutter requiring 50 % less applied force than conventional heavy-duty side cutters of the same size. Reapplying the tool reduces the force required. 72 3181 overall length mm 180 High-performance heavy-duty side cutter TwinForce®, 72 3170 eShop 73F polished High-performance heavy-duty side cutter TwinForce®, 72 3181 eShop 73F polished, with grips Cutting capacity soft wire up to ⌀ mm 5.5 Patented double joint. 50 % less force Ability to reapply Cutting capacity hard wire up to ⌀ mm 3.2 required. the tool. Cutting capacity piano wire up to ⌀ mm 3 ​ X-Cut® compact side cutter with box joint With slim head with induction hardened cutting edges (approx. 64 HRC). Box joint for maximum stability. Jaws chrome-plated, handles with multi-component covering. Insulated to DIN EN IEC 60900 / VDE 0682-201 for working at voltages up to 1000 V. Standard: DIN ISO 5749 Material: Special tool steel, drop-forged, and oil-hardened. overall length mm 160 X-Cut® compact side cutter, chrome-plated with grips 72 4310 72 4310 eShop 73F VDE insulated Cutting capacity soft wire up to ⌀ mm 4.8 Cutting capacity hard wire up to ⌀ mm 2.7 Cutting capacity piano wire up to ⌀ mm 2.2 72 ​ Side cutter ERGO™ with opening spring Jaws chrome-plated. Progressively ground cutting edges additionally induction hardened (approx. 62 HRC). With strong chamfered cutting edges near to the joint for hard material and a finer chamfer on the tips for optimum cutting of soft material. Heavy-duty grips with opening spring that can be engaged / disengaged. Standard: DIN ISO 5749 Opening spring can be engaged / Material: Chrome vanadium steel, drop-forged and oil-hardened. disengaged. 72 5240 overall length mm 125 160 72 5240 73O Side cutter ERGO™, chrome-plated eShop eShop Cutting capacity piano wire up to ⌀ mm 1.6 2 ​ Side cutters with opening spring Jaws chrome-plated with thick-walled grips. Plastic opening spring for reduced operator fatigue. Cutting edges additionally induction hardened (approx. 62 HRC). Standard: DIN ISO 5749 Material: Chrome vanadium steel, drop-forged and oil-hardened. 72 5265 Overall length mm 160 180 72 5265 Side cutter, chrome-plated eShop eShop 73R Cutting capacity hard wire up to ⌀ mm 2 2.2 Cutting capacity piano wire up to ⌀ mm 1.8 2 766
