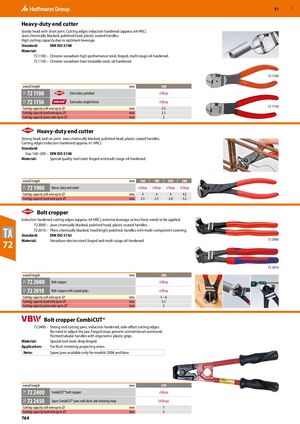

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 764

GBP 57 ​Heavy-duty end cutter Sturdy head with short joint. Cutting edges induction hardened (approx. 64 HRC). Jaws chemically blacked, polished head, plastic coated handles. High cutting capacity due to optimum leverage. Standard: DIN ISO 5748 Material: 72 1100 – Chrome-vanadium high-performance steel, forged, multi-stage oil-hardened. 72 1150 – Chrome-vanadium heat treatable steel, oil-hardened. 72 1100 overall length mm 160 72 1100 End cutter, polished eShop 73F 72 1150 End cutter, bright finish eShop 72B 72 1150​ Cutting capacity soft wire up to ⌀ mm 4.5 Cutting capacity hard wire up to ⌀ mm 2.5 Cutting capacity piano wire up to ⌀ mm 2 ​ Heavy-duty end cutter Strong head, laid-on joint. Jaws chemically blacked, polished head, plastic coated handles. Cutting edges induction hardened (approx. 61 HRC). Standard: Size 160–200 – DIN ISO 5748 Material: Special quality tool steel, forged and multi-stage oil-hardened. overall length mm 160 180 200 280 72 1900 Heavy-duty end cutter eShop eShop eShop eShop 73F Cutting capacity soft wire up to ⌀ mm 4 4 4 4.5 Cutting capacity hard wire up to ⌀ mm 2.3 2.5 2.8 3.2 ​ Bolt cropper Induction hardened cutting edges (approx. 64 HRC), extreme leverage so less force needs to be applied. 72 2000 – Jaws chemically blacked, polished head, plastic coated handles. 72 2010 – Pliers chemically blacked, head bright polished, handles with multi-component covering. Standard: DIN ISO 5743 Material: Vanadium electro-steel, forged and multi-stage oil-hardened. 72 2000​ 72 72 2010​ overall length mm 200 72 2000 Bolt cropper eShop 73F 72 2010 Bolt cropper with coated grips eShop 73F Cutting capacity soft wire up to ⌀ mm 1–6 Cutting capacity hard wire up to ⌀ mm 3.5 Cutting capacity piano wire up to ⌀ mm 3 ​ Bolt cropper CombiCUT® 72 2400 – Strong end cutting jaws, induction hardened, side-offset cutting edges. No need to adjust the jaw. Forged stops prevent unintentional overtravel. Painted tubular handles with ergonomic plastic grips. Material: Special tool steel, drop-forged. Application: For flush trimming projecting wires. Note: Spare jaws available only for models 2004 and later. overall length mm 370 72 2400 CombiCUT® bolt cropper eShop 73K 72 2450 Spare CombiCUT® jaws with bolts and retaining rings (eShop) 73K Cutting capacity soft wire up to ⌀ mm 7 Cutting capacity hard wire up to ⌀ mm 4 764
