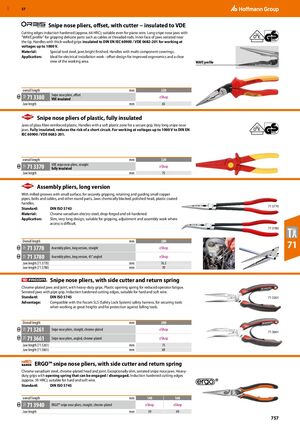

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 757

GBP 57 ​ Snipe nose pliers, offset, with cutter − insulated to VDE Cutting edges induction hardened (approx. 64 HRC); suitable even for piano wire. Long snipe nose jaws with ″WAVE profile″ for gripping delicate parts such as cables or threaded rods. Inner face of jaws serrated near the tip. Handles with thick-walled grips insulated to DIN EN IEC 60900 / VDE 0682-201 for working at voltages up to 1000 V. Material: Special tool steel, jaws bright finished. Handles with multi-component coverings. Application: Ideal for electrical installation work - offset design for improved ergonomics and a clear view of the working area. WAVE profile overall length mm 220 Snipe nose pliers, offset 71 3380 eShop 76B VDE insulated Jaw length mm 65 ​ Snipe nose pliers of plastic, fully insulated Jaws of glass fibre-reinforced plastic. Handles with a soft plastic zone for a secure grip. Very long snipe nose jaws. Fully insulated, reduces the risk of a short circuit. For working at voltages up to 1000 V to DIN EN IEC 60900 / VDE 0682-201. overall length mm 220 VDE snipe nose pliers, straight 71 3370 eShop 73F fully insulated Jaw length mm 75 ​ Assembly pliers, long version With milled grooves with small surface, for securely gripping, retaining and guiding small copper pipes, bolts and cables, and other round parts. Jaws chemically blacked, polished head, plastic coated handles. 71 3770 Standard: DIN ISO 5743 Material: Chrome vanadium electro-steel, drop-forged and oil-hardened. Application: Slim, very long design, suitable for gripping, adjustment and assembly work where access is difficult. 71 3780 Overall length mm 280 71 3770 Assembly pliers, long version, straight eShop 71 73F 71 3780 Assembly pliers, long version, 45° angled eShop 73F Jaw length (71 3770) mm 76.5 Jaw length (71 3780) mm 70 ​ Snipe nose pliers, with side cutter and return spring Chrome-plated jaws and joint, with heavy-duty grips. Plastic opening spring for reduced operator fatigue. Serrated jaws with pipe grip. Induction hardened cutting edges, suitable for hard and soft wire. Standard: DIN ISO 5745 71 3261 Advantage: Compatible with the Facom SLS (Safety Lock System) safety harness, for securing tools when working at great heights and for protection against falling tools. Overall length mm 200 71 3261 Snipe nose pliers, straight, chrome-plated eShop 73R 71 3661 71 3661 Snipe nose pliers, angled, chrome-plated eShop 73R Jaw length (71 3261) mm 75 Jaw length (71 3661) mm 69 ​ ERGO™ snipe nose pliers, with side cutter and return spring Chrome vanadium steel, chrome-plated head and joint. Exceptionally slim, serrated snipe nose jaws. Heavy- duty grips with opening spring that can be engaged / disengaged. Induction hardened cutting edges (approx. 59 HRC); suitable for hard and soft wire. Standard: DIN ISO 5745 overall length mm 140 160 71 3940 73O ERGO™ snipe nose pliers, straight, chrome-plated eShop eShop Jaw length mm 39 49 757
