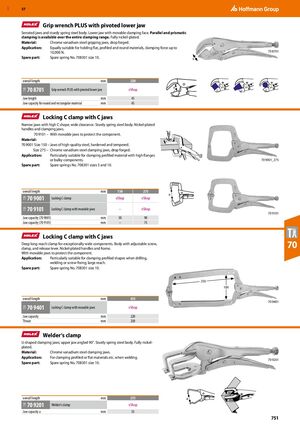

GBP 57 ​ Grip wrench PLUS with pivoted lower jaw Serrated jaws and sturdy spring steel body. Lower jaw with movable clamping face. Parallel and prismatic clamping is available over the entire clamping range. Fully nickel-plated. Material: Chrome vanadium steel gripping jaws, drop forged. Application: Equally suitable for holding flat, profiled and round materials, clamping force up to 10,000 N. 70 8701 Spare part: Spare spring No. 708301 size 10. a overall length mm 250 a 70 8701 Grip wrench PLUS with pivoted lower jaw eShop 72B Jaw length mm 45 Jaw capacity for round and rectangular material mm 45 ​ Locking C clamp with C jaws Narrow jaws with high C shape; wide clearance. Sturdy spring steel body. Nickel-plated handles and clamping jaws. 70 9101 – With movable jaws to protect the component. Material: 70 9001 Size 150 – Jaws of high-quality steel, hardened and tempered. Size 275 – Chrome vanadium steel clamping jaws, drop forged. Application: Particularly suitable for clamping profiled material with high flanges or bulky components. 70 9001_275 Spare part: Spare springs No. 708301 sizes 5 and 10. overall length mm 150 275 a 70 9001 Locking C clamp eShop eShop 72B 70 9101 Locking C clamp with movable jaws – eShop 72B 70 9101 Jaw capacity (70 9001) mm 50 90 Jaw capacity (70 9101) mm – 75 ​ Locking C clamp with C jaws Deep long-reach clamp for exceptionally wide components. Body with adjustable screw, clamp, and release lever. Nickel-plated handles and frame. 70 With movable jaws to protect the component. Application: Particularly suitable for clamping profiled shapes when drilling, welding or screw-fixing; large reach. Spare part: Spare spring No. 708301 size 10. 250 100 overall length mm 455 70 9401 70 9401 Locking C clamp with movable jaws eShop 72B Jaw capacity mm 220 Throat mm 250 ​ Welder‘s clamp U-shaped clamping jaws; upper jaw angled 90°. Sturdy spring steel body. Fully nickel- plated. Material: Chrome vanadium steel clamping jaws. Application: For clamping profiled or flat materials etc. when welding. 70 9201 Spare part: Spare spring No. 708301 size 10. overall length mm 275 a 70 9201 Welder’s clamp eShop 72B Jaw capacity a mm 55 751
