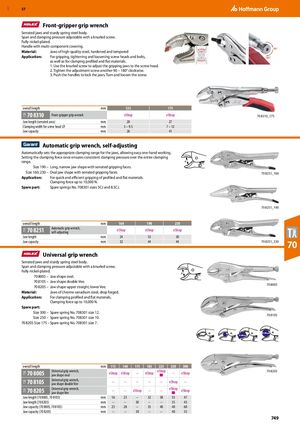

GBP 57 ​ Front-gripper grip wrench Serrated jaws and sturdy spring steel body. Span and clamping pressure adjustable with a knurled screw. Fully nickel-plated. Handle with multi-component covering. Material: Jaws of high-quality steel, hardened and tempered Application: For gripping, tightening and loosening screw heads and bolts, as well as for clamping profiled and flat materials. 1. Use the knurled screw to adjust the gripping jaws to the screw head. 2. Tighten the adjustment screw another 90 – 180° clockwise. 3. Push the handles to lock the jaws. Turn and loosen the screw. overall length mm 125 175 70 8310 Front-gripper grip wrench eShop eShop 72B 70 8310_175 Jaw length (serrated area) mm 20 27 Clamping width for screw head ⌀ mm 3 – 9.5 7 – 12 Jaw capacity mm 26 41 ​ Automatic grip wrench, self-adjusting Automatically sets the appropriate clamping range for the jaws, allowing easy one-hand working. Setting the clamping force once ensures consistent clamping pressure over the entire clamping range. a Size 190 – Long, narrow jaw shape with serrated gripping faces. Size 160; 230 – Oval jaw shape with serrated gripping faces. 70 8251_160 Application: For quick and efficient gripping of profiled and flat materials. Clamping force up to 10,000 N. Spare part: Spare springs No. 708301 sizes 5CJ and 8.5CJ. 70 8251_190 overall length mm 160 190 230 Automatic grip wrench, 70 8251 eShop eShop eShop 71B self-adjusting Jaw length mm 24 53 30 70 Jaw capacity mm 32 44 44 70 8251_230 ​ Universal grip wrench Serrated jaws and sturdy spring steel body. Span and clamping pressure adjustable with a knurled screw. Fully nickel-plated. a 70 8005 – Jaw shape oval. 70 8105 – Jaw shape double Vee. 70 8005 70 8205 – Jaw shape upper straight, lower Vee. Material: Jaws of chrome vanadium steel, drop forged. Application: For clamping profiled and flat materials. Clamping force up to 10,000 N. Spare part: Size 300 – Spare spring No. 708301 size 12. 70 8105 Size 250 – Spare spring No. 708301 size 10. 70 8205 Size 175 – Spare spring No. 708301 size 7. overall length mm 115 140 175 185 225 250 300 Universal grip wrench, eShop eShop 70 8205 70 8005 eShop eShop – – eShop 72B jaw shape oval ■ Universal grip wrench, 70 8105 – – – – – eShop – 72B jaw shape double Vee Universal grip wrench, eShop eShop 70 8205 – – eShop – – 72B jaw shape Vee ■ Jaw length (70 8005, 70 8105) mm 16 23 – 32 38 35 47 Jaw length (70 8205) mm – – 30 – – 35 45 Jaw capacity (70 8005, 70 8105) mm 25 28 – 35 40 40 60 Jaw capacity (70 8205) mm – – 30 – – 40 55 749
