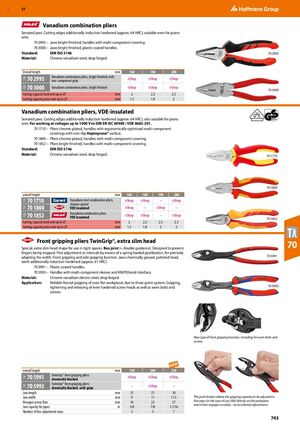

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 743

GBP 57 ​ Vanadium combination pliers Serrated jaws. Cutting edges additionally induction hardened (approx. 64 HRC); suitable even for piano wire. 70 2995 – Jaws bright finished, handles with multi-component covering. 70 3000 – Jaws bright finished, plastic coated handles. Standard: DIN ISO 5746 70 2995 Material: Chrome vanadium steel, drop forged. Overall length mm 160 180 200 Vanadium combination pliers, bright finished, with 70 2995 eShop eShop eShop 72B two-component grips 70 3000 Vanadium combination pliers, bright finished eShop eShop eShop 72B 70 3000 Cutting capacity hard wire up to ⌀ mm 2 2.2 2.5 Cutting capacity piano wire up to ⌀ mm 1.5 1.8 2 ​Vanadium combination pliers, VDE-insulated Serrated jaws. Cutting edges additionally induction hardened (approx. 64 HRC); also suitable for piano wire. For working at voltages up to 1000 V to DIN EN IEC 60900 / VDE 0682-201. 70 1710 – Pliers chrome-plated, handles with ergonomically optimised multi-component coverings with non-slip Haptoprene® surface. 70 1800 – Pliers chrome-plated, handles with multi-component covering. 70 1852 – Pliers bright finished, handles with multi-component covering. Standard: DIN ISO 5746 Material: Chrome vanadium steel, drop forged. 70 1710 70 1800 overall length mm 160 180 190 200 70 1710 Vanadium steel combination pliers, eShop eShop – eShop 73F 71B chrome-plated 70 1800 VDE insulated eShop – eShop – Vanadium combination pliers 70 1852 eShop eShop – eShop 72B VDE insulated 70 1852 Cutting capacity hard wire up to ⌀ mm 2 2.2 2.5 2.5 Cutting capacity piano wire up to ⌀ mm 1.5 1.8 2 2 ​ Front gripping pliers TwinGrip®, extra slim head Special, extra slim head shape for use in tight spaces. Box joint (= double guidance). Designed to prevent 70 fingers being trapped. Fine adjustment at intervals by means of a spring-loaded pushbutton, for precisely adapting the width. Front gripping and side gripping function. Jaws chemically greyed, polished head, 70 5991 teeth additionally induction hardened (approx. 61 HRC). 70 5991 – Plastic coated handles. 70 5993 – Handles with multi-component sleeves and KNIPEXtend interface. Material: Chrome vanadium electro-steel, drop forged. Application: Reliable frontal gripping of even flat workpieces due to three-point system. Gripping, tightening and releasing of even hardened screw heads as well as worn bolts and 70 5993 screws. New type of front gripping function, including for worn bolts and screws. NEW overall length mm 150 200 250 TwinGrip® front gripping pliers 70 5991 eShop eShop eShop 73F chemically blacked TwinGrip® front gripping pliers 70 5993 – eShop – 73F chemically blacked, with grips Jaw length mm 21 27 30 Jaw width mm 9 11 11.5 The push-button allows the gripping capacity to be adjusted in Hexagon across flats mm 16 22 27 five steps (in the case of size 200) directly on the workpiece and it then engages securely – no accidental adjustments. Jaw capacity for pipes in 5/8 7/8 1.1/16 Number of fine adjustment steps 3 5 7 743
