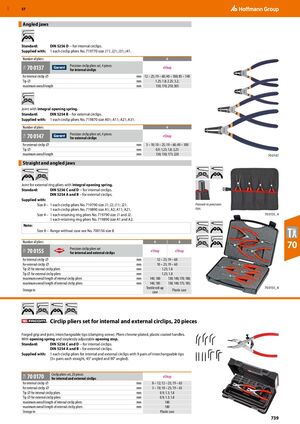

GBP 57 Angled jaws Standard: DIN 5256 D − for internal circlips. Supplied with: 1 each circlip pliers No. 719770 size J11; J21; J31; J41. Number of pliers 4 Precision circlip pliers set, 4 pieces 70 0137 eShop 71A for internal circlips for internal circlip ⌀ mm 12 – 25; 19 – 60; 40 – 100; 85 – 140 Tip ⌀ mm 1.25; 1.8; 2.25; 3.2; maximum overall length mm 130; 170; 210; 305 Joint with integral opening spring. Standard: DIN 5254 B – for external circlips. Supplied with: 1 each circlip pliers No. 719870 size A01; A11; A21; A31. Number of pliers 4 Precision circlip pliers set, 4 pieces 70 0147 eShop 71A for external circlips for external circlip ⌀ mm 3 – 10; 10 – 25; 19 – 60; 40 – 100 Tip ⌀ mm 0,9; 1,25; 1,8; 2,25 maximum overall length mm 130; 130; 175; 220 70 0147 Straight and angled jaws Joint for external ring pliers with integral opening spring. Standard: DIN 5256 C and D − for internal circlips. DIN 5254 A and B – for external circlips. Supplied with: Size 8 – 1 each circlip pliers No. 719790 size J1; J2; J11; J21. Pressed-in precision 1 each circlip pliers No. 719890 size A1; A2; A11; A21. tips. Size 4 – 1 each retaining ring pliers No. 719790 size J1 and J2. 70 0155_4 1 each retaining ring pliers No. 719890 size A1 and A2. Note: Size 8 – Range without case see No. 700156 size 8 Number of pliers 70 0155 Precision circlip pliers set 4 eShop 8 eShop 70 73F for internal and external circlips for internal circlip ⌀ mm 12 – 25; 19 – 60 for external circlip ⌀ mm 10 – 25; 19 – 60 Tip ⌀ for internal circlip pliers mm 1.25; 1.8 Tip ⌀ for external circlip pliers mm 1.25; 1.8 maximum overall length of internal circlip pliers mm 140; 180 130; 140; 170; 180; maximum overall length of external circlip pliers mm 140; 185 130; 140; 175; 185; Textile roll-up 70 0155_8 Storage in Plastic case case Circlip pliers set for internal and external circlips, 20 pieces Forged grip and joint, interchangeable tips (clamping screw). Pliers chrome-plated, plastic coated handles. With opening spring and steplessly adjustable opening stop. Standard: DIN 5256 C and D − for internal circlips. DIN 5254 A and B – for external circlips. Supplied with: 1 each circlip pliers for internal and external circlips with 9 pairs of interchangeable tips (3× pairs each straight, 45° angled and 90° angled). Circlip pliers set, 20 pieces 70 0170 eShop 73R for internal and external circlips for internal circlip ⌀ mm 8 – 12; 12 – 25; 19 – 63 for external circlip ⌀ mm 3 – 10; 10 – 25; 19 – 63 Tip ⌀ for internal circlip pliers mm 0.9; 1.3; 1.8 Tip ⌀ for external circlip pliers mm 0.9; 1.3; 1.8 maximum overall length of internal circlip pliers mm 180 maximum overall length of external circlip pliers mm 180 Storage in Plastic case 739
