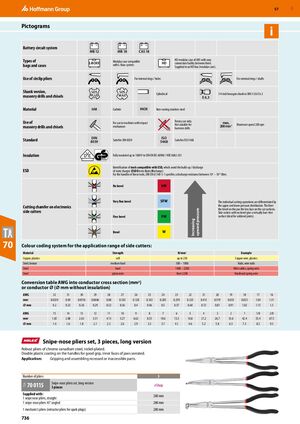

GBP 57 Pictograms Battery circuit system MB 12 MB 18 CAS 18 Types of HD modular case of ABS with easy L-BOXX Modular case compatible HD connection facility between them. bags and cases with L-Boxx system. Supplied in an HD box (modular case). Use of circlip pliers For internal rings / holes For external rings / shafts Shank version, SDS SDS Cylindrical 1/4 inch hexagon shank to DIN 3126 E 6.3 masonry drills and chisels PLUS MAX E 6,3 Material HM Carbide INOX Non-rusting stainless steel Use of Rotary use only. max. For use in machines with impact Not suitable for 200 min-1 Maximum speed 200 rpm masonry drills and chisels mechanism hammer drills DIN ISO Standard 8039 Satisfies DIN 8039 5468 Satisfies ISO 5468 Insulation Fully insulated up to 1000 V to DIN EN IEC 60900 / VDE 0682-201 Identification of tools compatible with ESD, which avoid the build-up / discharge ESD of static charges (ESD Electro Static Discharge). For the handles of these tools, DIN EN 61340-5-1 specifies a discharge resistance between 104 − 1011 Ohm. No bevel kW Very fine bevel SFW The individual cutting operations are differentiated by Cutting chamfer on electronics the upper and lower pressure distribution. The finer the bevel on the jaw the less burr on the cut surfaces. upward pressure side cutters Side cutters with no bevel give a virtually burr-free Fine bevel FW surface (ideal for soldered joints). Increasing Bevel W 70 Colour coding system for the application range of side cutters: Material Strength N/mm2 Example Copper, plastics soft up to 250 Copper wire, plastics Steel, bronze medium hard 500 – 1000 Nails, wire nails Steel hard 1400 – 2200 Wire cables, spring wire Steel piano wire from 2200 Hardened spring wire Conversion table AWG into conductor cross section (mm2) or conductor ⌀ (⌀ mm without insulation) AWG 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 mm2 0.0324 0.04 0.0516 0.0646 0.08 0.102 0.128 0.163 0.205 0.259 0.325 0.412 0.519 0.653 0.823 1.04 1.31 ⌀ mm 0.2 0.23 0.26 0.29 0.32 0.36 0.4 0.46 0.5 0.57 0.64 0.72 0.81 0.91 1.02 1.15 1.3 AWG 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1/0 2/0 mm2 1.65 2.08 2.63 3.31 4.15 5.27 6.62 8.35 10.6 13.3 16.8 21.2 26.7 33.6 42.4 53.4 67.5 ⌀ mm 1.4 1.6 1.8 2.1 2.3 2.6 2.9 3.3 3.7 4.1 4.6 5.2 5.8 6.5 7.3 8.2 9.3 ​ Snipe-nose pliers set, 3 pieces, long version Robust pliers of chrome vanadium steel, nickel-plated. Double plastic coating on the handles for good grip, inner faces of jaws serrated. Application: Gripping and assembling recessed or inaccessible parts. Number of pliers 3 Snipe-nose pliers set, long version 70 0115 72A eShop 3 pieces Supplied with: 280 mm 1 snipe nose pliers, straight 1 snipe-nose pliers 45° angled 280 mm 1 mechanic’s pliers (extractor pliers for spark plugs) 280 mm 736
