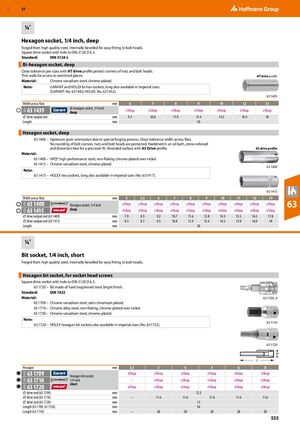

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 533

GBP 57 ​Hexagon socket, 1/4 inch, deep Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Square drive socket with hole to DIN 3120 D 6.3. Standard: DIN 3124-L Bi-hexagon socket, deep ​ Close tolerance jaw sizes with HT drive profile protect corners of nuts and bolt heads. Thin walls for access to restricted places. HT drive profile Material: Chrome vanadium steel, chrome-plated. Note: GARANT and HOLEX bi-hex sockets, long also available in imperial sizes (GARANT: No. 631442; HOLEX: No. 631452). 63 1439 Width across flats mm 6 7 8 9 10 12 13 Bi-hexagon socket, 1/4 inch 63 1439 eShop eShop eShop eShop eShop eShop eShop 61A deep ⌀ drive output end mm 9.3 10.8 11.9 13.4 14.5 16.9 18 Length mm 50 Hexagon socket, deep ​ 63 1400 – Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Rounded surface with AS Drive profile. AS drive profile Material: 63 1400 – HPQ® high performance steel, non-flaking chrome-plated over nickel. 63 1415 – Chrome vanadium steel, chrome-plated. 63 1400 Note: 63 1415 – HOLEX hex sockets, long also available in imperial sizes (No. 631417). 63 1415 Width across flats mm 5 5,5 6 7 8 9 10 11 12 13 63 1400 eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 63 62A 63A Hexagon socket, 1/4 inch deep 63 1415 eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop ⌀ drive output end (63 1400) mm 7.9 8.5 9.2 10.7 11.6 12.8 14.3 15.5 16.5 17.8 ⌀ drive output end (63 1415) mm 8.1 8.7 9.3 10.8 11.9 13.4 14.5 15.9 16.9 18 Length mm 50 ​Bit socket, 1/4 inch, short Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Hexagon bit socket, for socket head screws ​ Square drive socket with hole to DIN 3120 D 6.3. 63 1720 – Bit made of hard toughened steel, bright finish. Standard: DIN 7422 Material: 63 1709_4 63 1709 – Chrome vanadium steel, satin chromium plated. 63 1710 – Chrome alloy steel, non-flaking, chrome-plated over nickel. 63 1720 – Chrome vanadium steel, chrome-plated. Note: 63 1710 63 1720 – HOLEX hexagon bit sockets also available in imperial sizes (No. 631722). 63 1720 ⌀ L Hexagon mm 2,5 3 4 5 6 8 63 1709 eShop eShop eShop eShop eShop eShop 62A 63A 61A Hexagon bit socket, 63 1710 1/4 inch short – eShop eShop eShop eShop eShop 63 1720 eShop eShop eShop eShop eShop eShop ⌀ drive end (63 1709) mm 12.5 ⌀ drive end (63 1710) mm – 11.6 11.6 11.6 11.6 11.6 ⌀ drive end (63 1720) mm 13 Length (63 1709, 63 1720) mm 36 Length (63 1710) mm – 28 28 28 28 28 533
