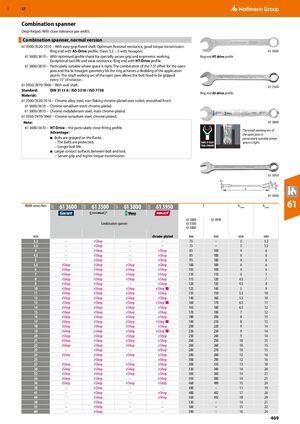

GBP 57 ​Combination spanner Drop-forged. With close tolerance jaw width. Combination spanner, normal version ​ 61 3500/3520/3510 – With easy-grip fluted shaft. Optimum flexional resistance, good torque transmission. Ring end with AS-Drive profile. (Sizes 3.2 − 5 with hexagon). 61 3600 61 3600/3610 – With optimised profile shank for specially secure grip and ergonomic working. Ring end HT drive profile Exceptional tool life and wear resistance. Ring end with HT-Drive profile. 61 3800/3810 – Particularly suitable where space is tight. The combination of the 7.5° offset for the open jaws and the bi-hexagon geometry for the ring achieves a doubling of the application points. The small working arc of the open jaws allows the bolt head to be gripped every 15° of rotation. 61 3950/3970/3960 – With oval shaft. 61 3500 Standard: DIN 3113 A / ISO 3318 / ISO 7738 Ring end AS drive profile. Material: 61 3500/3520/3510 – Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish. 61 3600/3610 – Chrome vanadium steel, chrome-plated. 61 3800/3810 – Chrome molybdenum steel, matt chrome-plated. 61 3950/3970/3960 – Chrome vanadium steel, chrome-plated. Note: 61 3800 61 3600/3610 – HT-Drive – the particularly close-fitting profile. The small working arc of Advantage: the open jaws is ■ Bolts are gripped on the flanks. particularly suitable where − The bolts are protected. space is tight. − Longer bolt life. ■ Larger contact surfaces between bolt and tool. − Secure grip and higher torque transmission. 61 3950 h1 h2 15° L 61 3600 Width across flats 61 3600 61 3500 61 3800 61 3950 L h1 max h2 max 61 62A 63A 61A 63F 61 3600 61 3950 Combination spanner 61 3500 61 3800 mm chrome-plated mm mm mm mm 3,2 – eShop – – 75 – 3 3.2 3,5 – eShop – – 75 – 3 3.2 4 – eShop – eShop 85 100 4 6 4,5 – eShop – eShop 85 100 4 6 5 – eShop – eShop 95 100 4 6 5,5 eShop eShop eShop eShop 100 100 4 6 6 eShop eShop eShop eShop 105 100 4 6 7 eShop eShop eShop eShop 110 110 4 7 8 eShop eShop eShop eShop 115 120 4.5 7 9 eShop eShop – eShop 120 130 4.5 8 10 eShop eShop eShop eShop ■ 125 140 5 9 11 eShop eShop eShop eShop 135 150 5.5 10 12 eShop eShop eShop eShop 140 160 5.5 10 13 eShop eShop eShop eShop ■ 160 170 6.5 11 14 eShop eShop eShop eShop 165 180 6.5 12 15 eShop eShop eShop eShop 170 190 7 12 16 eShop eShop eShop eShop 180 200 8 13 17 eShop eShop eShop eShop ■ 190 210 8 13 18 eShop eShop eShop eShop 200 220 9 14 19 eShop eShop eShop eShop ■ 230 230 9 14 20 eShop eShop eShop eShop 230 240 9 14 21 eShop eShop eShop eShop 260 250 10 15 22 eShop eShop eShop eShop 260 260 10 15 23 – eShop – eShop 280 270 10 15 24 eShop eShop eShop eShop 280 280 12 16 25 – eShop – eShop 300 290 12 16 27 eShop eShop eShop eShop 300 310 13 18 30 eShop eShop eShop eShop 330 340 14 20 32 eShop eShop eShop eShop 360 360 14 21 34 eShop eShop – eShop 450 380 14 21 36 eShop eShop eShop eShop 460 400 15 24 38 – eShop – – 480 – 11 19 41 – eShop – eShop 480 442 17 26 46 – eShop – eShop 500 492 18 28 50 – eShop – – 530 – 14 21 55 – eShop – – 560 – 15 22 60 – eShop – – 590 – 16 24 469
