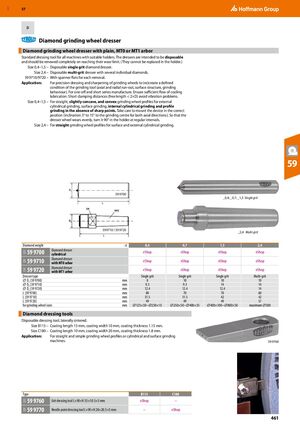

GBP 57 D Diamond grinding wheel dresser Diamond grinding wheel dresser with plain, MT0 or MT1 arbor ​ Standard dressing tool for all machines with suitable holders. The dressers are intended to be disposable and should be renewed completely on reaching their wear limit. (They cannot be replaced in the holder.) Size 0,4–1,5 – Disposable single grit diamond dresser. Size 2,4 – Disposable multi-grit dresser with several individual diamonds. 59 9710/9720 – With spanner flats for each removal. Application: For precision dressing and sharpening of grinding wheels to (re)create a defined condition of the grinding tool (axial and radial run-out, surface structure, grinding behaviour). For one-off and short series manufacture. Ensure sufficient flow of cooling lubrication. Short clamping distances (free length < 2×D) avoid vibration problems. Size 0,4–1,5 – For straight, slightly concave, and convex grinding wheel profiles for external cylindrical grinding, surface grinding, internal cylindrical grinding and profile grinding in the absence of sharp points. Take care to mount the device in the correct position (inclination 3° to 15° to the grinding centre for both axial directions). So that the dresser wheel wears evenly, turn it 90° in the holder at regular intervals. Size 2,4 – For straight grinding wheel profiles for surface and external cylindrical grinding. 59 59 9700 _0,4; _0,7; _1,5 Single grit 59 9710 / 59 9720 _2,4 Multi-grit Diamond weight ct 0,4 0,7 1,5 2,4 Diamond dresser 59 9700 eShop eShop eShop eShop 53Y cylindrical Diamond dresser 59 9710 eShop eShop eShop eShop 53Y with MT0 arbor Diamond dresser 59 9720 eShop eShop eShop eShop 53Y with MT1 arbor Dresser type Single grit Single grit Single grit Multi-grit ⌀ D1 (59 9700) mm 8 10 10 10 ⌀ D2 (59 9710) mm 9.3 9.3 14 14 ⌀ D2 (59 9720) mm 12.4 12.4 12.4 14 L (59 9700) mm 80 70 70 60 L (59 9710) mm 31.5 31.5 42 42 L (59 9720) mm 49 49 49 57 for grinding wheel sizes mm ⌀125×30−⌀250×15 ⌀250×50−⌀400×35 ⌀400×100−⌀800×50 maximum ⌀500 Diamond dressing tools ​ Disposable dressing tool, laterally sintered. Size B115 – Coating length 15 mm, coating width 10 mm, coating thickness 1.15 mm. Size C180 – Coating length 10 mm, coating width 20 mm, coating thickness 1.8 mm. Application: For straight and simple grinding wheel profiles or cylindrical and surface grinding machines. 59 9760 Type B115 C180 59 9760 Grit dressing tool L×W×H 33×10.5×5 mm eShop – 53Y 59 9770 Needle point dressing tool L×W×H 28×20.5×5 mm – eShop 53Y 461
