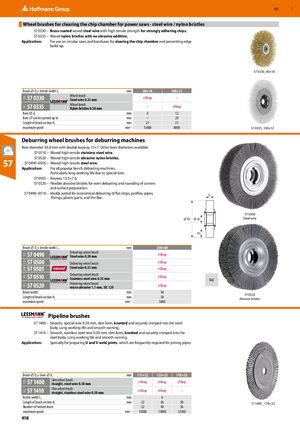

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 418

GBP 57 Wheel brushes for clearing the chip chamber for power saws - steel wire / nylon bristles ​ 57 0330 – Brass-coated waved steel wire with high tensile strength for strongly adhering chips. 57 0335 – Waved nylon bristles with no abrasive additive. Application: For use on circular saws and bandsaws for clearing the chip chamber and preventing edge build-up. 57 0330_80×18 Brush ⌀ D1× bristle width L1 mm 80×18 100×12 Wheel brush 57 0330 eShop – 57L Steel wire 0.25 mm Wheel brush 57 0335 – eShop 57L Nylon bristles 0.50 mm Bore ⌀ d1 mm 6 12 Bore ⌀ can be opened up to mm – 20 Length of brush section H1 mm 27 21 maximum speed min-1 15000 8000 57 0335_100×12 ​Deburring wheel brushes for deburring machines Bore diameter 50.8 mm with double keyway 13×7. Other bore diameters available. 57 0510 – Waved high-tensile stainless steel wire. 57 0520 – Waved high-tensile abrasive nylon bristles. 57 57 0490–0505 – Waved high-tensile steel wire. Application: For all popular bench deburring machines. Particularly long working life due to special wire. 57 0505 – Keyway 13.5×7.6. 57 0520 – Flexible abrasive bristles for even deburring and rounding of corners and surface preparation. 57 0490–0510 – Ideally suited for economical deburring of flat strips, profiles, pipes, L1 fittings, plastic parts, and the like. 57 0500 ⌀ D1 ⌀ d1 Steel wire H1 Brush ⌀ D1× bristle width L1 mm 250×60 Deburring wheel brush 57 0490 eShop 57L Steel wire 0.20 mm 57 0500 eShop 57H 57L Deburring wheel brush Steel wire 0.35 mm 57 0505 eShop Deburring wheel brush 57 0510 eShop 57L Stainless steel wire 0.35 mm SiC Deburring wheel brush 57 0520 eShop 57L micro-abrasive 1.1 mm, SiC 120 Brush width mm 58 57 0520 Length of brush section H1 mm 50 Abrasive bristles maximum speed min-1 3600 ​ Pipeline brushes 57 1400 – Smooth, special wire 0.50 mm, slim form, knotted and securely crimped into the steel body. Long working life and smooth running. 57 1410 – Smooth, stainless steel wire 0.50 mm, slim form, knotted and securely crimped into the steel body. Long working life and smooth running. Application: Specially for preparing U and V weld joints, which are frequently required for joining pipes. Brush ⌀ D1× bore ⌀ d1 mm 115×22 125×22 178×22 Slim wheel brush 57 1400 eShop eShop eShop 57L straight, steel wire 0.50 mm Slim wheel brush 57 1410 eShop eShop – 57L straight, stainless steel wire 0.50 mm Bristle width L1 mm 6 Length of brush section H1 mm 22 26 30 57 1400 _178×22 Number of twisted knots 32 40 56 maximum speed min-1 15000 15000 12500 418
