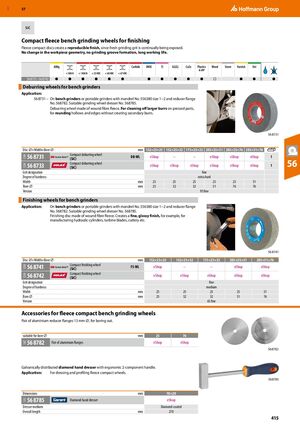

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 415

GBP 57 SiC ​Compact fleece bench grinding wheels for finishing Fleece compact discs create a reproducible finish, since fresh grinding grit is continually being exposed. No change in the workpiece geometry, no grinding groove formation, long working life. ​ 56 8731–​56 8742 ● ● ● ● ● ● ● ● ● ● ● ○ ● ● ● Deburring wheels for bench grinders ​ Application: 56 8731 – On bench grinders or portable grinders with mandrel No. 556380 size 1−2 and reducer flange No. 568782. Suitable grinding wheel dresser No. 568785. Deburring wheel made of wound fibre fleece. For cleaning off larger burrs on pressed parts, for rounding hollows and edges without creating secondary burrs. 56 8731 Disc ⌀×Width×Bore ⌀ mm 152×25×25 152×25×32 175×25×32 203×25×51 203×25×76 203×51×76 Compact deburring wheel 56 8731 53M DB-WL eShop – – eShop eShop eShop 1 (SiC) 56 8733 Compact deburring wheel 56 52M eShop eShop eShop eShop eShop eShop 1 (SiC) Grit designation fine ​ Degree of hardness extra hard ​ Width mm 25 25 25 25 25 51 ​ Bore ⌀ mm 25 32 32 51 76 76 ​ Version 9S fine ​ Finishing wheels for bench grinders ​ Application: On bench grinders or portable grinders with mandrel No. 556380 size 1−2 and reducer flange No. 568782. Suitable grinding wheel dresser No. 568785. Finishing disc made of wound fibre fleece. Creates a fine, glossy finish, for example, for manufacturing hydraulic cylinders, turbine blades, cutlery etc. 56 8741 Disc ⌀×Width×Bore ⌀ mm 152×25×25 152×25×32 175×25×32 203×25×51 203×51×76 Compact finishing wheel 56 8741 53M FS-WL eShop – – eShop eShop (SiC) Compact finishing wheel 56 8742 52M eShop eShop eShop eShop eShop (SiC) Grit designation fine Degree of hardness medium Width mm 25 25 25 25 51 Bore ⌀ mm 25 32 32 51 76 Version 6S fine ​Accessories for fleece compact bench grinding wheels Pair of aluminium reducer flanges 13 mm ⌀, for boring out. suitable for bore ⌀ mm 25 76 56 8782 Pair of aluminium flanges eShop eShop 56Z 56 8782 Galvanically distributed diamond hand dresser with ergonomic 2-component handle. Application: For dressing and profiling fleece compact wheels. 56 8785 Dimensions mm 70×20 56 8785 Diamond hand dresser eShop 51G Dresser medium Diamond-coated Overall length mm 270 415
