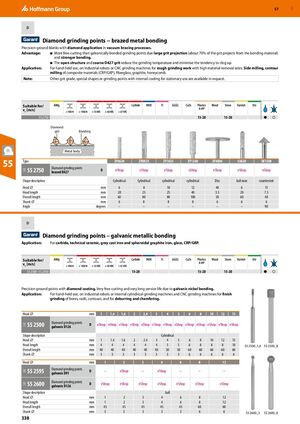

GBP 57 D Diamond grinding points − brazed metal bonding Precision-ground blanks with diamond application in vacuum brazing processes. Advantage: ■ More free-cutting than galvanically bonded grinding points due large grit projection (about 70% of the grit projects from the bonding material) and stronger bonding. ■ The open structure and coarse D427 grit reduce the grinding temperature and minimise the tendency to clog up. Application: For hand-held use, on industrial robots or CNC grinding machines for rough grinding work with high material removal rates. Side milling, contour milling of composite materials (CRP/GRP), fibreglass, graphite, honeycomb. Note: Other grit grade, special shapes or grinding points with internal cooling for stationary use are available in request. Suitable for/ vc [m/s] 55 2750 15-20 15-20 ● ○ Diamond grit Bonding Metal body 55 Type Diamond grinding points ZY0620 ZY0825 ZY1025 ZY1240 ZY4004 C0620 SK1508 55 2750 D eShop eShop eShop eShop eShop eShop eShop 51E brazed D427 Shape description Cylindrical Cylindrical cylindrical cylindrical Disc ball nose countersink Head ⌀ mm 6 8 10 12 40 6 15 Head length mm 20 25 25 40 3.5 20 7.5 Overall length mm 60 80 80 100 50 60 48 Shank ⌀ mm 6 8 8 8 6 6 6 Angle degrees – – – – – – 90 D Diamond grinding points – galvanic metallic bonding Application: For carbide, technical ceramic, grey cast iron and spheroidal graphite iron, glass, CRP/GRP. Suitable for/ vc [m/s] 55 2500–​55 2810 15-20 15-20 15-20 ● ○ Precision ground points with diamond coating. Very free-cutting and very long service life due to galvanic nickel bonding. Application: For hand-held use, on industrial robots or internal cylindrical grinding machines and CNC grinding machines for finish grinding of bores, radii, contours, and for deburring and chamfering. Head ⌀ mm 1 1,4 1,6 2 2,4 3 4 5 6 8 10 12 15 Diamond grinding points 55 2500 D eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 51E galvanic D126 Shape description Cylindrical Head ⌀ mm 1 1.4 1.6 2 2.4 3 4 5 6 8 10 12 15 Head length mm 4 4 4 4 4 4 5 5 6 8 8 8 10 55 2500_1,6 55 2500_8 Overall length mm 40 40 40 40 40 40 50 50 60 60 60 60 60 Shank ⌀ mm 3 3 3 3 3 3 3 3 6 6 6 6 6 Head ⌀ mm 1 2 3 4 6 8 12 Diamond grinding points 55 2595 D – eShop – eShop – – – 51E galvanic D91 Diamond grinding points 55 2600 D eShop eShop eShop eShop eShop eShop eShop 51E galvanic D126 Shape description ball Head ⌀ mm 1 2 3 4 6 8 12 Head length mm 1 2 3 4 6 8 12 Overall length mm 45 45 45 45 45 60 60 Shank ⌀ mm 3 3 3 3 3 6 6 55 2600_3 55 2600_8 338
