Ручные и измерительные инструменты Hoffmann Group 2026 - страница 315

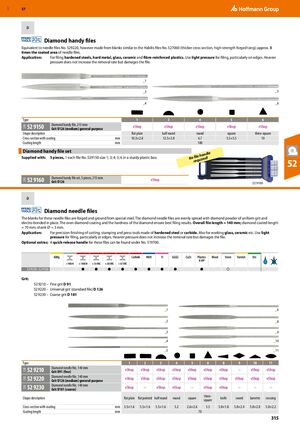

GBP 57 D Diamond handy files Equivalent to needle files No. 529220, however made from blanks similar to the Habilis files No. 527060 (thicker cross section, high-strength forged tang); approx. 3 times the coated area of needle files. Application: For filing hardened steels, hard metal, glass, ceramic and fibre-reinforced plastics. Use light pressure for filing, particularly on edges. Heavier pressure does not increase the removal rate but damages the file. _1 _3 _5 _4 _6 Type 1 3 4 5 6 Diamond handy file, 215 mm 52 9150 eShop eShop eShop eShop eShop 53B Grit D126 (medium) general-purpose Shape description flat plain half round round square three-square Cross-section with coating mm 10.3×2.8 12.5×3.8 6.7 5.5×5.5 10 Coating length mm 100 Diamond handy file set ​ dle e han Supplied with: 5 pieces, 1 each file No. 529150 size 1; 3; 4; 5; 6 in a sturdy plastic box. No fil uired! req 52 Diamond handy file set, 5 pieces, 215 mm 52 9160 eShop 53B Grit D126 52 9160 D Diamond needle files The blanks for these needle files are forged and ground from special steel. The diamond needle files are evenly spread with diamond powder of uniform grit and electro-bonded in place. The even diamond coating and the hardness of the diamond ensure best filing results. Overall file length = 140 mm; diamond coated length = 70 mm; shank ⌀ = 3 mm. Application: For precision finishing of cutting, stamping and press tools made of hardened steel or carbide. Also for working glass, ceramic etc. Use light pressure for filing, particularly at edges. Heavier pressure does not increase the removal rate but damages the file. Optional extras: A quick-release handle for these files can be found under No. 519700. ​ 52 9210–​52 9350 ● ● ● ● ● ● ● ● ● ○ Grit: 52 9210 – Fine grit D 91 52 9220 – Universal grit (standard file) D 126 52 9230 – Coarse grit D 181 _1 _6 _2 _8 _3 _9 _4 _10 _5 _11 Type 1 2 3 4 5 6 8 9 10 11 Diamond needle file, 140 mm 52 9210 eShop eShop eShop eShop eShop eShop eShop – eShop eShop 53B Grit D91 (fine) Diamond needle file, 140 mm 52 9220 eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 53B Grit D126 (medium) general-purpose Diamond needle file, 140 mm 52 9230 eShop – eShop eShop – eShop eShop – – – 53B Grit D181 (coarse) three- Shape description flat plain flat pointed half round round square knife sword barrette crossing square Cross-section with coating mm 5.5×1.6 5.5×1.6 5.5×1.6 3.2 2.6×2.6 3.5 5.0×1.8 5.0×2.4 5.0×2.0 5.0×2.2 Coating length mm 70 315
