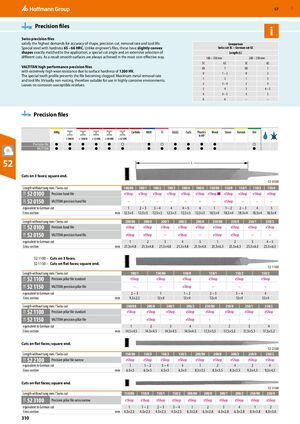

GBP 57 Precision files Swiss precision files satisfy the highest demands for accuracy of shape, precision cut, removal rate and tool life. Comparison Special steel with hardness 65 – 66 HRC. Unlike engineer‘s files, these have slightly convex Swiss cut SC − German cut GC shapes exactly matched to the application, a special cut angle and an extensive selection of Length (L) different cuts. As a result smooth surfaces are always achieved in the most cost-effective way. 100 – 150 mm 200 – 250 mm SC GC SC GC VALTITAN high performance precision files 00 1 00 1 with extremely high wear resistance due to surface hardness of 1200 HV. 0 1–2 0 2 The special tooth profile prevents the file becoming clogged. Maximum metal removal rate 1 3 1 3 and tool life. Virtually non-rusting, therefore suitable for use in highly corrosive environments. Leaves no corrosion-susceptible residues. 2 3–4 2 4 3 4 3 4–5 4 4–5 4 5 6 6 – – ​ Precision files Precision file ● ● ● ● ● ○ ● ○ ● ● ● ● ○ VALTITAN ● ● ● ● ● ● ● ● ● ● ● ● ● 52 L Cuts on 3 faces; square end. 52 0100​ Length without tang mm / Swiss cut 100/00 100/1 100/2 100/3 100/4 100/6 150/00 150/0 150/1 150/3 150/4 52 0100 Precision hand file eShop eShop eShop eShop eShop eShop eShop ■ eShop eShop eShop eShop 53B 52 0150 VALTITAN precision hand file – – – – – – – eShop – – – 53B equivalent to German cut 1 2−3 3−4 4 4−5 6 1 1−2 2−3 4 5 Cross section mm 12.5×3 12.5×3 12.5×3 12.5×3 12.5×3 12.5×3 18.5×4 18.5×4 18.5×4 18.5×4 18.5×4 Length without tang mm / Swiss cut 200/00 200/0 200/1 200/2 200/4 250/00 250/0 250/1 250/3 52 0100 Precision hand file eShop eShop eShop eShop eShop eShop eShop eShop eShop 53B 52 0150 VALTITAN precision hand file eShop eShop – eShop – eShop eShop – – 53B equivalent to German cut 1 2 3 4 5 1 2 3 4−5 Cross section mm 21.3×4.8 21.3×4.8 21.3×4.8 21.3×4.8 21.3×4.8 25.3×6.3 25.3×6.3 25.3×6.3 25.3×6.3 52 1100 – Cuts on 3 faces. 52 1150 – Cuts on flat faces; square end. 52 1100​ Length without tang mm / Swiss cut 100/1 150/00 150/0 150/1 150/2 150/3 52 1100 Precision pillar file standard eShop eShop eShop eShop eShop eShop 53B 52 1150 VALTITAN precision pillar file – – eShop – – – 53B equivalent to German cut 2−3 1 1−2 2−3 3−4 4 Cross section mm 9,5×2,5 12×4 12×4 12×4 12×4 12×4 Length without tang mm / Swiss cut 200/00 200/0 200/1 200/2 250/00 250/0 250/1 250/2 52 1100 Precision pillar file standard eShop eShop eShop eShop eShop eShop eShop eShop 53B 52 1150 VALTITAN precision pillar file – eShop – eShop – – – – 53B equivalent to German cut 1 2 3 4 1 2 3 4 Cross section mm 14.5×4.5 14.5×4.5 14.5×4.5 14.5×4.5 17,5×5,3 17,5×5,3 17,5×5,3 17,5×5,3 Cuts on flat faces; square end. 52 2100​ Length without tang mm / Swiss cut 150/00 150/0 150/2 150/3 200/00 200/0 200/2 250/0 250/2 52 2100 Precision pillar file narrow eShop eShop eShop eShop eShop eShop eShop eShop eShop 53B equivalent to German cut 1 1−2 3−4 4 1 2 4 2 4 Cross section mm 6.5×3 6.5×3 6.5×3 6.5×3 8.3×3.5 8.3×3.5 8.3×3.5 9,3×4,3 9,3×4,3 Cuts on flat faces; square end. 52 3100​ Length without tang mm / Swiss cut 150/00 150/0 150/1 150/2 200/00 200/0 200/1 200/2 250/00 250/0 52 3100 Precision pillar file extra narrow eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 53B equivalent to German cut 1 1−2 2−3 3−4 1 2 3 4 1 2 Cross section mm 4.5×2.5 4.5×2.5 4.5×2.5 4.5×2.5 6.3×2.8 6.3×2.8 6.3×2.8 6.3×2.8 8.3×3.8 8.3×3.8 310
