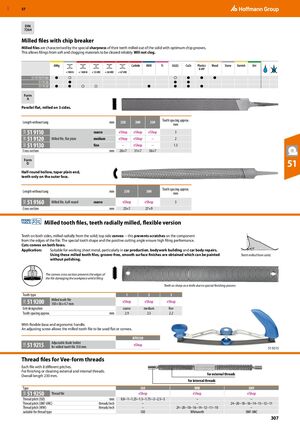

GBP 57 DIN 7264 ​Milled files with chip breaker Milled files are characterised by the special sharpness of their teeth milled out of the solid with optimum chip grooves. This allows filings from soft and clogging materials to be cleared reliably. Will not clog. ​ 51 9110/​9160 ● ○ ○ ● ● ● 51 9120 ● ● ● 51 9130 ● ● ○ ○ ● ● ● ● Form A Parallel flat, milled on 3 sides. Tooth spacing approx. Length without tang mm 250 300 350 mm 51 9110 coarse eShop eShop eShop 3 56B 56B 56B 51 9120 Milled file, flat plain medium eShop eShop – 2 51 9130 fine – eShop – 1.5 Cross section mm 26×7 31×7 36×7 ​ 51 Form D Half-round hollow, taper plain end, teeth only on the outer face. Tooth spacing approx. Length without tang mm 250 300 mm 51 9160 Milled file, half-round coarse eShop eShop 3 56B Cross section mm 23×7 27×9 ​ ​ Milled tooth files, teeth radially milled, flexible version Teeth on both sides, milled radially from the solid; top side convex − this prevents scratches on the component from the edges of the file. The special tooth shape and the positive cutting angle ensure high filing performance. Cuts convex on both faces. 16° Application: Suitable for working sheet metal, particularly in car production, bodywork building and car body repairs. Using these milled tooth files, groove-free, smooth surface finishes are obtained which can be painted Teeth milled from solid. without polishing. The convex cross section prevents the edges of the file damaging the workpiece whilst filing Teeth as sharp as a knife due to special finishing process Tooth type 1 2 3 Milled tooth file 51 9200 eShop eShop eShop 53B 350×36×4.7 mm Grit designation coarse medium fine Tooth spacing approx. mm 2.9 2.5 2.2 With flexible base and ergonomic handle. An adjusting screw allows the milled tooth file to be used flat or convex. ​ KFH350 Adjustable blade holder 51 9215 eShop 53B for milled tooth file 350 mm 51 9215 ​Thread files for Vee-form threads Each file with 8 different pitches. For finishing or cleaning external and internal threads. Overall length 230 mm. for external threads for internal threads Type ISO WW UNF 51 9250 Thread file eShop eShop eShop 56B Thread pitch (ISO) mm 0.8−1−1.25−1.5−1.75−2−2.5−3 – – Thread pitch (UNF-UNC) threads/inch – – 24−20−18−16−14−13−12−11 Thread pitch (WW) threads/inch – 24−20−18−16−14−12−11−10 – suitable for thread type ISO Whitworth UNF-UNC 307
