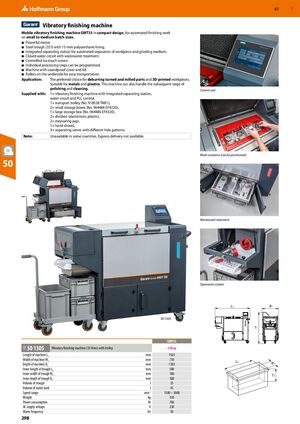

GBP 57 ​ Vibratory finishing machine Mobile vibratory finishing machine GMT35 in compact design, for automated finishing work on small to medium batch sizes. ■ Powerful motor. ■ Steel trough (35 l) with 15-mm polyurethane lining. ■ Integrated separating station for automated separation of workpiece and grinding medium. ■ Closed water circuit with wastewater treatment. ■ Controlled via touch screen. ■ Individual processing steps can be programmed. ■ Machine with soundproof cover and lid. ■ Rollers on the underside for easy transportation. Application: The preferred choice for deburring turned and milled parts and 3D-printed workpieces. Suitable for metals and plastics. This machine can also handle the subsequent steps of polishing and cleaning. Control unit Supplied with: 1× vibratory finishing machine with integrated separating station, water circuit and PLC control, 1× transport trolley (No. 918558 TNB1), 2× small storage boxes (No. 964486 EF4220), 1× large storage box (No. 964486 EF4320), 2× dividers (aluminium, plastic), 2× measuring jugs, 1× hand shovel, 3× separating sieves with different hole patterns. Note: Unavailable in some countries. Express delivery not available. Work container (can be partitioned) 50 Wastewater treatment Separation station L1 B1 50 1305 T1 ​ GMT35 50 1305 Vibratory finishing machine (35 litres) with trolley eShop 51B Length of machine L1 mm 1565 Width of machine W1 mm 710 L2 B2 Depth of machine D1 mm 1385 Inner length of trough L2 mm 590 Inner width of trough W2 mm 180 T2 Inner depth of trough D2 mm 300 Volume of trough l 35 Volume of water tank l 45 Speed range min-1 1500 – 3000 Weight kg 350 Power consumption W 700 AC supply voltage V 230 Mains frequency Hz 50 298
