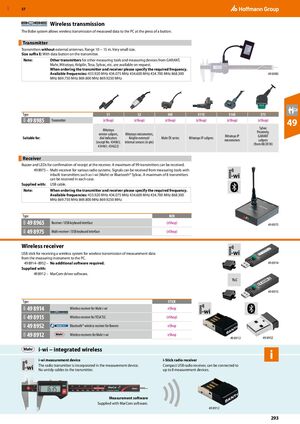

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 293

GBP 57 ​ Wireless transmission The Bobe system allows wireless transmission of measured data to the PC at the press of a button. Transmitter ​ Transmitters without external antennas. Range 10 − 15 m. Very small size. Size suffix E: With data button on the transmitter. Note: Other transmitters for other measuring tools and measuring devices from GARANT, Mahr, Mitutoyo, Kröplin, Tesa, Sylvac, etc. are available on request. When ordering the transmitter and receiver please specify the required frequency. Available frequencies: 433.920 MHz 434.075 MHz 434.600 MHz 434.700 MHz 868.300 49 8985 MHz 869.750 MHz 869.800 MHz 869.9250 MHz Type S1 S2 S4E S11E S16E S73 49 8985 49 49H Transmitter (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Sylvac Mitutoyo Proximity, vernier calipers, Mitutoyo micrometers, Mitutoyo IP GARANT Suitable for: dial indicators Kröplin external/ Mahr EX series Mitutoyo IP calipers micrometers calipers (except No. 434065; internal sensors (6-pin) (from 08/2018) 434461; 434622) Receiver ​ Buzzer and LEDs for confirmation of receipt at the receiver. A maximum of 99 transmitters can be received. 49 8975 – Multi-receiver for various radio systems. Signals can be received from measuring tools with inbuilt transmitters such as i-wi (Mahr) or Bluetooth® Sylvac. A maximum of 8 transmitters can be received in each case. Supplied with: USB cable. Note: When ordering the transmitter and receiver please specify the required frequency. Available frequencies: 433.920 MHz 434.075 MHz 434.600 MHz 434.700 MHz 868.300 MHz 869.750 MHz 869.800 MHz 869.9250 MHz Type BOX 49 8965 49H Receiver / USB keyboard interface (eShop) 49 8975 49 8975 49H Multi-receiver / USB keyboard interface (eShop) ​Wireless receiver USB stick for receiving a wireless system for wireless transmission of measurement data from the measuring instrument to the PC. 49 8914–8952 – No additional software required. 49 8914 Supplied with: 49 8912 – MarCom driver software. TLC 49 8915 Type STICK 49 8914 49H Wireless receiver for Mahr i-wi eShop 49 8915 49H Wireless receiver for TESA TLC (eShop) 49 8952 Bluetooth® wireless receiver for Bowers eShop 46B 49 8912 Wireless receivers for Mahr i-wi eShop 43A 49 8912 49 8952 i-wi − integrated wireless i-wi measurement device i-Stick radio receiver The radio transmitter is incorporated in the measurement device. Compact USB radio receiver, can be connected to No untidy cables to the transmitter. up to 8 measurement devices. Measurement software Supplied with MarCom software. 49 8912 293
