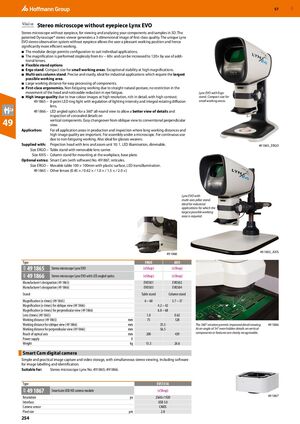

GBP 57 ​ Stereo microscope without eyepiece Lynx EVO Stereo microscope without eyepiece, for viewing and analysing your components and samples in 3D. The patented Dynascope® stereo viewer generates a 3-dimensional image of first-class quality. The unique Lynx EVO stereo observation system without eyepiece allows the user a pleasant working position and hence significantly more efficient working. ■ The modular design permits configuration to suit individual applications. ■ The magnification is performed steplessly from 6× – 60× and can be increased to 120× by use of addi- tional lenses. ■ Flexible stand options ■ Ergo stand. Compact size for small working areas. Exceptional stability at high magnifications. ■ Multi-axis column stand. Precise and sturdy, ideal for industrial applications which require the largest possible working area. ■ Large working distance for easy processing of components. ■ First-class ergonomics. Non-fatiguing working due to straight natural posture, no restriction in the movement of the head and noticeable reduction in eye fatigue. Lynx EVO with Ergo ■ High image quality due to true colour images at high resolution, rich in detail, with high contrast. stand. Compact size for 49 1865 – 8-point LED ring light with regulation of lighting intensity and integral rotating diffusion small working areas. lens. 49 1866 – LED angled optics for a 360° all-round view to allow a better view of details and inspection of concealed details on 49 vertical components. Easy changeover from oblique view to conventional perpendicular view. Application: For all application areas in production and inspection where long working distances and high image quality are important. For assembly under a microscope. For continuous use due to non-fatiguing working. Also ideal for glasses wearers. Supplied with: Projection head with lens and zoom unit 10: 1. LED illumination, dimmable. 49 1865_ERGO Size ERGO – Table stand with removable lens carrier. Size AXIS – Column stand for mounting at the workplace, base plate. Optional extras: Smart Cam (with software) No. 491867, reticules. Size ERGO – Movable table 100 × 100mm with plastic surface, LED transillumination. 49 1865 – Other lenses (0.45 × / 0.62 × / 1.0 × / 1.5 × / 2.0 ×) Lynx EVO with multi-axis pillar stand. Ideal for industrial applications for which the largest possible working area is required. 49 1865_AXIS 49 1866 Type ERGO AXIS 49 1865 Stereo microscope Lynx EVO (eShop) (eShop) 49B 49 1866 Stereo microscope Lynx EVO with LED angled optics (eShop) (eShop) 49B Manufacturer‘s designation (49 1865) EVO501 EVO502 Manufacturer‘s designation (49 1866) EVO503 EVO504 Stand Table stand Column stand Magnification (x-times) (49 1865) 6 – 60 3.7 – 37 Magnification (x-times) for oblique view (49 1866) 4.2 – 42 Magnification (x-times) for perpendicular view (49 1866) 6.8 – 68 Lens (times) (49 1865) 1.0 0.62 Working distance (49 1865) mm 75 128 Working distance for oblique view (49 1866) mm 35.5 The 360° rotation permits improved detail viewing. 49 1866 Working distance for perpendicular view (49 1866) mm 56.5 At an angle of 34° even hidden details on vertical Reach of optical axis mm 200 439 components or features are clearly recognisable. Power supply V ​ Weight kg 15.3 26.6 Smart Cam digital camera Simple and practical image capture and video storage, with simultaneous stereo viewing. Including software for image labelling and identification. Suitable for: Stereo microscope Lynx No. 491865; 491866. Type EVC131A 49 1867 Smartcam USB HD camera module (eShop) 49B Resolution px 2560×1920 49 1867 Interface USB 3.0 Camera sensor CMOS Pixel size µm 2.8 254
