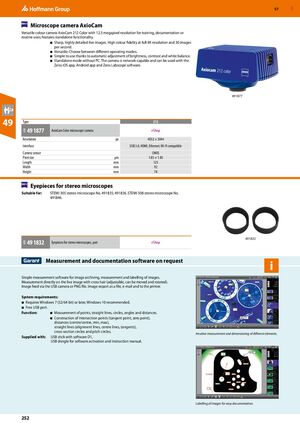

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 252

GBP 57 ​ Microscope camera AxioCam Versatile colour camera AxioCam 212 Color with 12.3 megapixel resolution for training, documentation or routine uses; features standalone functionality. ■ Sharp, highly detailed live images. High colour fidelity at full 4K resolution and 30 images per second. ■ Versatile: Choose between different operating modes. ■ Simple to use thanks to automatic adjustment of brightness, contrast and white balance. ■ Standalone mode without PC. The camera is network-capable and can be used with the Zeiss iOS app, Android app and Zeiss Labscope software. 49 1877 49 Type 212 49 1877 AxioCam Color microscope camera eShop 49B Resolution px 4032 × 3044 Interface USB 3.0, HDMI, Ethernet, Wi-Fi compatible Camera sensor CMOS Pixel size µm 1.85 × 1.85 Length mm 125 Width mm 92 Height mm 78 ​ Eyepieces for stereo microscopes Suitable for: STEMI 305 stereo microscope No. 491835; 491836. STEMI 508 stereo microscope No. 491846. 49 1832 49 1832 Eyepieces for stereo microscopes, pair eShop 49B Measurement and documentation software on request Simple measurement software for image archiving, measurement and labelling of images. Measurement directly on the live image with cross hair (adjustable, can be moved and rotated). Image feed via the USB camera or PNG file. Image export as a file, e-mail and to the printer. System requirements: ■ Requires Windows 7 (32/64 bit) or later, Windows 10 recommended. ■ Free USB port. Function: ■ Measurement of points, straight lines, circles, angles and distances. ■ Construction of intersection points (tangent point, zero point), distances (centre/centre, min, max), straight lines (alignment lines, centre lines, tangents), cross-section circles and pitch circles. Intuitive measurement and dimensioning of different elements. Supplied with:  USB stick with software D1, USB dongle for software activation and instruction manual. Labelling of images for easy documentation. 252
