Ручные и измерительные инструменты Hoffmann Group 2026 - страница 247

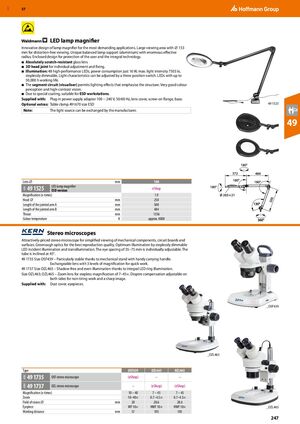

GBP 57 LED lamp magnifier Innovative design of lamp magnifier for the most demanding applications. Large viewing area with ⌀ 153 mm for distortion-free viewing. Unique balanced lamp support (aluminium) with enormous effective radius. Enclosed design for protection of the user and the integral technology. ■ Absolutely scratch-resistant glass lens ■ 3D head joint for individual adjustment and fixing. ■ Illumination: 48 high-performance LEDs, power consumption just 16 W, max. light intensity 7503 lx, steplessly dimmable. Light characteristics can be adjusted by a three-position switch. LEDs with up to 50,000 h working life. ■ The segment circuit (visualiser) permits lighting effects that emphasise the structure. Very good colour perception and high-contrast vision. ■ Due to special coating, suitable for ESD workstations. Supplied with: Plug-in power supply adapter 100 − 240 V, 50/60 Hz, lens cover, screw-on flange, base. Optional extras: Table clamp 491670 size ESD 49 1525 Note: The light source can be exchanged by the manufacturer. 49 Lens ⌀ mm 160 LED lamp magnifier 49 1525 eShop 49A ESD version Magnification (x-times) 1.9 Head ⌀ mm 250 Length of the jointed arm A mm 500 Length of the jointed arm B mm 484 Throat mm 1356 Colour temperature K approx. 4000 ​ Stereo microscopes Attractively-priced stereo microscope for simplified viewing of mechanical components, circuit boards and surfaces. Greenough optics for the best reproduction quality. Optimum illumination by steplessly dimmable LED incident illumination and transillumination. The eye spacing of 55–75 mm is individually adjustable. The tube is inclined at 45°. 49 1735 Size OSF439 – Particularly stable thanks to mechanical stand with handy carrying handle. Exchangeable lens with 3 levels of magnification for quick work. 49 1737 Size OZL465 – Shadow-free and even illumination thanks to integral LED ring illumination. Size OZL463; OZL465 – Zoom lens for stepless magnification of 7–45×. Dioptre compensation adjustable on both sides for non-tiring work and a sharp image. Supplied with: Dust cover, eyepieces. _OSF439 _OZL463 Type OSF439 OZL463 OZL465 49 1735 49M OSF stereo microscope (eShop) – – 49 1737 49M OZL stereo microscope – (eShop) (eShop) Magnification (x-times) 10 – 40 7 – 45 7 – 45 Zoom 10–40× 0.7–4.5× 0.7–4.5× Field of vision ⌀ mm 20 28.6 28.6 Eyepiece WF 10× HWF 10× HWF 10× _OZL465 Working distance mm 57 105 105 247
