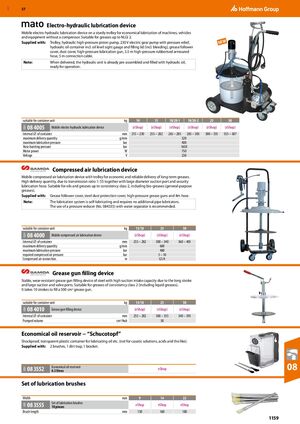

GBP 57 ​ Electro-hydraulic lubrication device Mobile electro-hydraulic lubrication device on a sturdy trolley for economical lubrication of machines, vehicles and equipment without a compressor. Suitable for greases up to NLGI 2. Supplied with: Trolley, hydraulic high-pressure piston pump, 230 V electric gear pump with pressure relief, NEW hydraulic oil container incl. oil level sight gauge and filling lid (incl. bleeding), grease follower cover, dust cover, high-pressure lubrication gun, 3.5 m high-pressure rubberised armoured hose, 5 m connection cable. Note: When delivered, the hydraulic unit is already pre-assembled and filled with hydraulic oil, ready for operation. suitable for container unit kg 10 15 18/20-1 18/20-2 25 50 08 4005 08H Mobile electro-hydraulic lubrication device (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Internal ⌀ of container mm 215 – 230 255 – 282 265 – 285 285 – 305 300 – 335 355 – 387 maximum delivery quantity g/min 320 maximum lubrication pressure bar 400 Hose bursting pressure bar 1650 Motor power W 750 Voltage V 230 ​ Compressed air lubrication device Mobile compressed air lubrication device with trolley for economic and reliable delivery of long-term greases. High delivery quantity, due to transmission ratio 1: 55 together with large diameter suction port and security lubrication hose. Suitable for oils and greases up to consistency class 2, including bio-greases (general-purpose greases). Supplied with: Grease follower cover, steel dust protection cover, high-pressure grease guns and 4m hose. Note: The lubrication system is self-lubricating and requires no additional pipe lubricators. The use of a pressure reducer (No. 084335) with water separator is recommended. suitable for container unit kg 15/18 25 50 08 4000 08H Mobile compressed air lubrication device (eShop) (eShop) (eShop) Internal ⌀ of container mm 255 – 282 300 – 340 360 – 405 maximum delivery quantity g/min 600 maximum lubrication pressure bar 400 required compressed air pressure bar 3 – 10 Compressed air connection. in G1/4 ​ Grease gun filling device Stable, wear-resistant grease gun filling device of steel with high suction intake capacity due to the long stroke and large suction and valve ports. Suitable for greases of consistency class 2 (including liquid greases). It takes 10 strokes to fill a 500 cm3 grease gun. suitable for container unit kg 15/18 25 50 08 4010 08H Grease gun filling device (eShop) (eShop) (eShop) Internal ⌀ of container mm 255 – 282 300 – 335 340 – 393 Pumped volume cm3/Hub 50 ​Economical oil reservoir − “Schucotopf” Shockproof, transparent plastic container for lubricating oil etc. (not for caustic solutions, acids and the like). Supplied with: 2 brushes, 1 dirt trap, 1 bracket. 08 3552 Economical oil reservoir 08 08H eShop 0.5 litres ​Set of lubrication brushes Width mm 9 14 22 Set of lubrication brushes 08 3555 eShop eShop eShop 08R 10 pieces Brush length mm 130 160 180 1159
