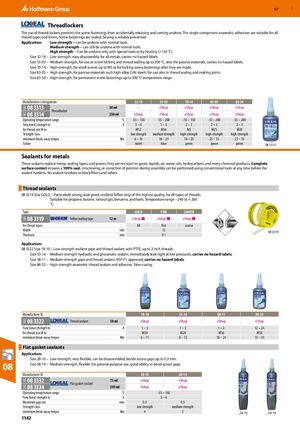

GBP 57 ​ Threadlockers The use of thread-lockers prevents the screw fastenings from accidentally releasing and coming undone. The single-component anaerobic adhesives are suitable for all thread types and forms. Screw fastenings are sealed. Seizing is reliably prevented. Application: Low strength − can be undone with normal tools. Medium strength − can still be undone with normal tools. High strength − Can be undone only with special tools or by heating (>150 °C). Size 32-18 – Low-strength, easy disassembly, for all metals, carries no hazard labels. Size 55-03 – Medium-strength, for use as screw locking and thread sealing up to 200 °C, also the passive materials, carries no hazard labels. Size 70-14 – High-strength, for small screws up to M5 or for locking screw fastenings after they are made. Size 83-05 – High-strength, for passive materials such high-alloy CrNi steels, for use also in thread sealing and making joints. Size 83-54 – High-strength, for permanent screw fastenings up to 200 °C temperature range. Manufacturer‘s designation 32-18 55-03 70-14 83-05 83-54 08 3313 08G 08G 50 ml – eShop eShop eShop eShop Threadlocker 08 3314 250 ml eShop eShop eShop eShop eShop Operating temperature range °C -55 – 150 -55 – 200 -55 – 150 -55 – 200 -55 – 200 Functional strength to h 3–6 1–3 2–3 2–3 2–3 for thread size M to M12 M36 M5 M25 M20 Strength class low strength medium strength high-strength high-strength high-strength minimum break-away torque Nm 6 – 10 18 – 23 10 – 25 25 – 35 25 – 35 Colour violet blue green green green 08 3313 ​Sealants for metals These sealants replace hemp, sealing tapes, and pastes, they are resistant to gases, liquids, air, water, oils, hydrocarbons and many chemical products. Complete surface contact ensures a 100% seal. Unscrewing, or correction of position during assembly can be performed using conventional tools at any time before the sealant hardens. No sealant residues to block filters and valves. Thread sealants ​ 08 3319 Size GOLD – Particularly strong, leak-proof, resilient Teflon strip of the highest quality, for all types of threads. Suitable for propane, butane, natural gas, benzene, and fuels. Temperature range −240 to + 260 °C. Type GOLD FINE COARSE 08 3319 08G Teflon sealing tape 12 m eShop ■ eShop ■ eShop ■ for thread types All fine coarse Width mm 12 08 3319 Thickness mm 0.1 Application: 08 3322 Size 18-10 – Low-strength resilient pipe and thread sealant with PTFE, up to 2 inch threads. Size 53-14 – Medium-strength hydraulic and pneumatic sealant, immediately leak-tight at low pressures, carries no hazard labels. Size 58-11 – Medium-strength pipe and thread sealant, NSF-P1 approved, carries no hazard labels. Size 86-55 – High-strength anaerobic thread sealant and adhesive. Slow-curing. Manufacturer ID 18-10 53-14 58-11 86-55 08 3322 08G Thread sealant 50 ml eShop eShop eShop eShop Functional strength to h 1–3 1–3 1–2 12 – 24 for thread size M to M50 M20 M56 M50 minimum break-away torque Nm 6 – 11 8 – 12 18 – 24 15 – 35 Flat gasket sealants ​ Application: Size 28-10 – Low-strength, very flexible, can be disassembled, bonds across gaps up to 0.3 mm. 08 Size 58-14 – Medium-strength, flexible, for general-purpose use, good ability to bond across gaps. Manufacturer ID 28-10 58-14 08 3332 08G 08G 75 ml eShop eShop Flat gasket sealant 08 3334 250 ml eShop eShop Operating temperature range °C -55 – 150 Functional strength to h 3–6 Maximum gap size mm 0.3 0.5 Strength class low strength medium strength minimum break-away torque Nm 4 5 _28-10 _58-14 1142
