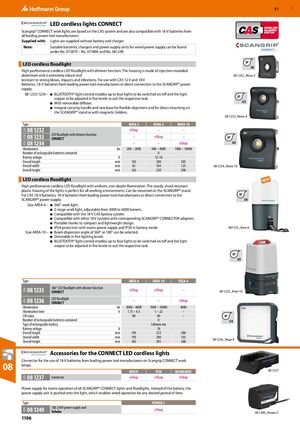

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1106

GBP
57

​ LED cordless lights CONNECT
Scangrip® CONNECT work lights are based on the CAS system and are also compatible with 18-V batteries from
all leading power tool manufacturers.
Supplied with: Lights are supplied without battery and charger.
Note: Suitable batteries, chargers and power supply units for wired power supply can be found
under No. 073870 – No. 073890 and No. 081249.
IP
LED cordless floodlight ​
30
High-performance cordless LED floodlight with dimmer function. The housing is made of injection-moulded
aluminium and is extremely robust and 08 1232_Nova-2
resistant to strong blows, impacts and vibrations. For use with CAS 12 V and 18 V
Batteries, 18-V batteries from leading power tool manufacturers or direct connection to the SCANGRIP® power
supply.
08 1233/1234 – ■ BLUETOOTH® light control enables up to four lights to be switched on/off and the light
IP
output to be adjusted in five levels to suit the respective task.
■ With removable diffuser.
65
■ Integral carrying handle and new base for flexible alignment and for direct mounting on
the SCANGRIP® stand or with magnetic holders.
08 1233_Nova-4
Type NOVA-2 NOVA-4 NOVA-10
08 1232 eShop – –
07A 07A 07A


LED floodlight with dimmer function
08 1233 CONNECT – eShop – IP
08 1234 – – eShop 65
Illumination lm 200 – 2000 400 – 4000 1000 – 10000
Number of rechargeable batteries contained 0
Battery voltage V 12; 18
Overall length mm 163 240 305
Overall width mm 63 104 125 08 1234_Nova-10
Overall height mm 163 230 290
LED cordless floodlight ​ NEW
High-performance cordless LED floodlight with uniform, non-dazzle illumination. The sturdy, shock-resistant
plastic housing of the lights is perfect for all working environments. Can be mounted on the SCANGRIP® stand.
For CAS 18-V batteries, 18-V batteries from leading power tool manufacturers or direct connection to the IP
SCANGRIP® power supply. 54
Size AREA-6 – ■ 360° work light.
■ 2-stage work light, adjustable from 3000 to 6000 lumens.
■ Compatible with the 18 V CAS battery system.
■ Compatible with other 18 V systems with corresponding SCANGRIP® CONNECTOR adapters.
■ Portable thanks to compact and lightweight design.
■ IP54 protection with mains power supply and IP30 in battery mode. 081235_Area-6
Size AREA-10 – ■ Beam dispersion angle of 360° or 180° can be selected.
■ Dimmable in five lighting levels.
■ BLUETOOTH® light control enables up to four lights to be switched on/off and the light
output to be adjusted in five levels to suit the respective task.
IP
65


Type AREA-6 AREA-10 VEGA-4
360° LED floodlight with dimmer function
08 1235 eShop eShop –
07A


CONNECT 08 1235_Area-10
LED floodlight
08 1236 – – eShop
07A


CONNECT
Illumination lm 3000 – 6000 1000 – 10000 4000
Illumination time h 1.75 – 6.5 1 – 22 –
CRI value 80 80 – IP
Number of rechargeable batteries contained 0 54
Type of rechargeable battery Lithium-ion
Battery voltage V 18
Overall length mm 195 212 280
Overall width mm 195 200 103
08 1236_Vega-4
Overall height mm 363 395 288

​ Accessories for the CONNECT LED cordless lights
Connector for the use of 18-V batteries from leading power tool manufacturers on Scangrip CONNECT work
08 lamps.
​ BOSCH FEIN MILWAUKEE 08 1237
08 1237 Connector eShop eShop eShop
07A


Power supply for mains operation of all SCANGRIP® CONNECT lights and floodlights. Instead of the battery, the
power supply unit is pushed onto the light, which enables wired operation for any desired period of time.
Type POWER-C
100-240V power supply unit
08 1249 eShop
07A


Schuko 08 1249_Power-C
1106
