Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1056

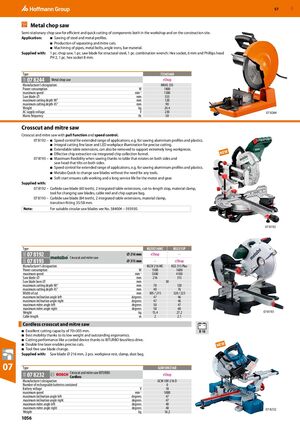

GBP 57 ​ Metal chop saw Semi-stationary chop saw for efficient and quick cutting of components both in the workshop and on the construction site. Application: ■ Sawing of steel and metal profiles. ■ Production of separating and mitre cuts. ■ Machining of pipes, metal bolts, angle irons, bar material. Supplied with: 1 pc. chop saw, 1 pc. saw blade for structural steel, 1 pc. combination wrench: Hex socket, 6 mm and Phillips head PH 2, 1 pc. hex socket 8 mm. Type 72365460 07 8244 Metal chop saw eShop 03F Manufacturer‘s designation MKAS 355 Power consumption W 1800 maximum speed min-1 1300 Saw blade ⌀ mm 355 maximum cutting depth 90° mm 120 maximum cutting depth 45° mm 90 Weight kg 24.4 AC supply voltage V 230 07 8244 Mains frequency Hz 50 ​Crosscut and mitre saw Crosscut and mitre saw with pull function and speed control. 07 8192 – ■ Speed control for extended range of applications, e.g. for sawing aluminium profiles and plastics. ■ Integral cutting line laser and LED workplace illumination for precise cutting. ■ Extendable table extensions, can also be removed to support extremely long workpieces. ■ Effective chip extraction via integrated chip collection funnel. NEW 07 8193 – ■ Maximum flexibility when sawing thanks to table that rotates on both sides and saw head that tilts on both sides. ■ Speed control for extended range of applications, e.g. for sawing aluminium profiles and plastics. ■ Metabo Quick to change saw blades without the need for any tools. ■ Soft start ensures safe working and a long service life for the motor and gear. Supplied with: 07 8192 – Carbide saw blade (60 teeth), 2 integrated table extensions, cut-to-length stop, material clamp, tool for changing saw blades, cable reel and chip capture bag. 07 8193 – Carbide saw blade (84 teeth), 2 integrated table extensions, material clamp, transition fitting 35/58 mm. Note: For suitable circular saw blades see No. 584004 – 593930. 07 8192 Type KGSV216MC KGS315P 07 8192 ⌀ 216 mm 03D 03D eShop – Crosscut and mitre saw 07 8193 ⌀ 315 mm – eShop Manufacturer‘s designation KGSV 216 MC KGS 315 Plus Power consumption W 1500 1600 maximum speed min-1 5300 4100 Saw blade ⌀ mm 216 315 Saw blade bore ⌀ mm 30 maximum cutting depth 90° mm 70 120 maximum cutting depth 45° mm 40 76 Width of cut mm 305 / 215 320 / 223 maximum inclination angle left degrees 47 46 maximum inclination angle right degrees 47 46 maximum mitre angle left degrees 50 47 maximum mitre angle right degrees 50 60 Weight kg 15.4 27.2 07 8193 Cable length m 2 2.1 Cordless crosscut and mitre saw ​ ■ Excellent cutting capacity of 70×305 mm. B 18 ■ Best mobility thanks to its low weight and outstanding ergonomics. ■ Cutting performance like a corded device thanks to BITURBO brushless drive. ■ Double line laser enables precise cuts. NEW ■ Tool-free saw blade change. Supplied with: Saw blade ⌀ 216 mm, 2 pcs. workpiece rest, clamp, dust bag. 07 Type Crosscut and mitre saw BITURBO GCM18V216D 07 8232 eShop 03B Cordless Manufacturer‘s designation GCM 18V-216 D Number of rechargeable batteries contained 0 Battery voltage V 18 maximum speed min-1 5000 maximum inclination angle left degrees 47 maximum inclination angle right degrees 47 maximum mitre angle left degrees 48 maximum mitre angle right degrees 48 07 8232 Weight kg 16.2 1056
